AllDieselBench CR-PT-2500 - CR - Rail Pressure Test Tool

Name: AllDieselBench CR-PT-2500 - CR - Rail Pressure Test Tool
Brand: AllDieselParts.com.tr
SKU: AllDieselBench CR-PT-2500

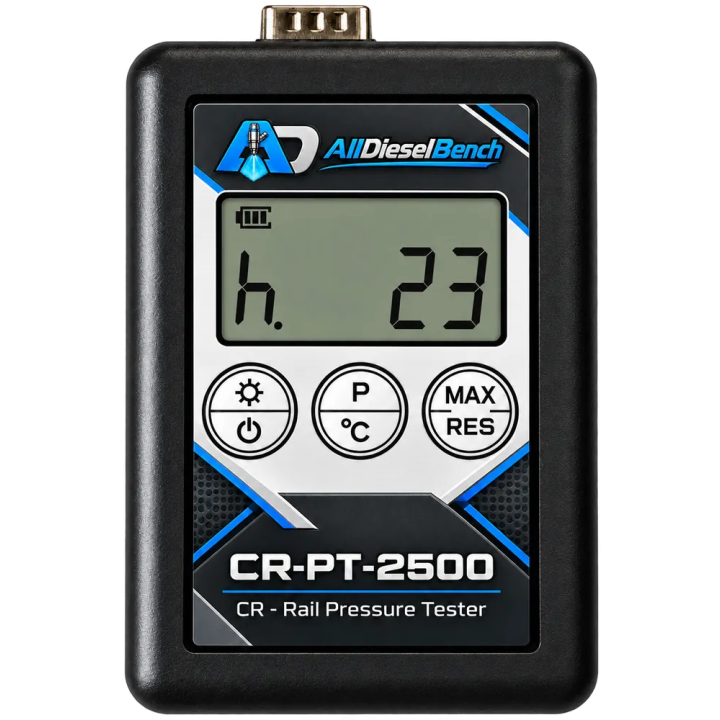

AllDieselBench CR-PT-2500 is a portable tester for monitoring current and peak fuel system pressure, measuring vacuum and recording measurement data using compatible Bosch and Denso pressure sensors.

Device Overview

AllDieselBench CR-PT-2500 is a portable tester for monitoring current and peak fuel system pressure, measuring vacuum and recording measurement data using compatible Bosch and Denso pressure sensors.

The device can be operated using its LCD display and three control buttons. A USB 2.0 connection enables PC-based viewing of pressure and compression recordings, graph analysis, measurement history management and report creation.

01 / SYSTEM

Measurement and Recording Functions

Display of current and maximum pressure.
Vacuum and peak vacuum monitoring with a suitable 100 kPa differential sensor.
Selection of supported Bosch and Denso pressure sensor types.
Internal recording of pressure and compression data with subsequent transfer to a computer.
Live graph display and measurement recording on a computer.
Adjustable recording trigger level, compression recording duration and cylinder selection.
Software management of compression recordings for up to six cylinders.
Time-axis and pressure-axis graph scrolling and zooming.
Measurement history, graph screenshots and report creation.
Display backlight, battery level indication and automatic shutdown 10 minutes after the last button press.

The measurement limit depends on the connected sensor. Support for 2500 bar applies when a suitable Bosch sensor is selected; it does not mean that every sensor has a 2500 bar range.

02 / DELIVERY SCOPE

Standard Delivery Contents

Item	Qty.
AllDieselBench CR-PT-2500 Main Unit	1
USB Computer Connection Cable	1
Device-to-Pressure-Sensor Connection Cable	1
Pressure Sensor with Connection Cable	1
Metal Connection Adapter	1
Vacuum Sensor with Connection Cable	1
DB-9M Connector	1
User Manual	1

03 / IMAGES

Standard Delivery Images

USB Computer Connection Cable

AllDieselBench CR-PT-2500 — device and pressure sensor connection cable

Device Connection Cable

Pressure Sensor with Connection Cable

Metal Connection Adapter

Vacuum Sensor with Connection Cable

04 / COMPATIBILITY

Sensor Support and Specifications

Feature	Value
Bosch sensor upper limits	140, 150, 160, 250, 400, 600, 1500, 1600, 1800, 2000, 2200, 2500 bar
Denso sensor upper limit	2000 bar
Vacuum measurement	With a 100 kPa differential sensor
Simultaneously connected pressure sensors	1
Power supply	2 AA batteries or AA rechargeable cells
Current consumption	Without sensor: 0.03 A · With sensor: 0.06 A · Backlight on: 0.1 A
Computer connection	USB 2.0
Dimensions	105 × 75 × 27 mm
Weight	Maximum 0.25 kg, excluding batteries

Check the sensor type, measuring range and connector pinout against the relevant technical documentation before connection. Internal recording availability depends on the hardware revision; the manual states that this function is absent from devices manufactured before 2016.

05 / SOFTWARE

Pressure Measurement and Analysis Software

Software images from the manual have been edited with English labels and AllDieselBench CR-PT-2500 branding for product presentation. These visuals do not represent a change to the installed software language or version.
