AllDieselBench - Piezo Tester | Piezo Injector Tester

Incoming inspection and adjustment device for Bosch, Siemens-VDO-Continental and Denso piezoelectric injectors.

PIEZO · VDO · RLC

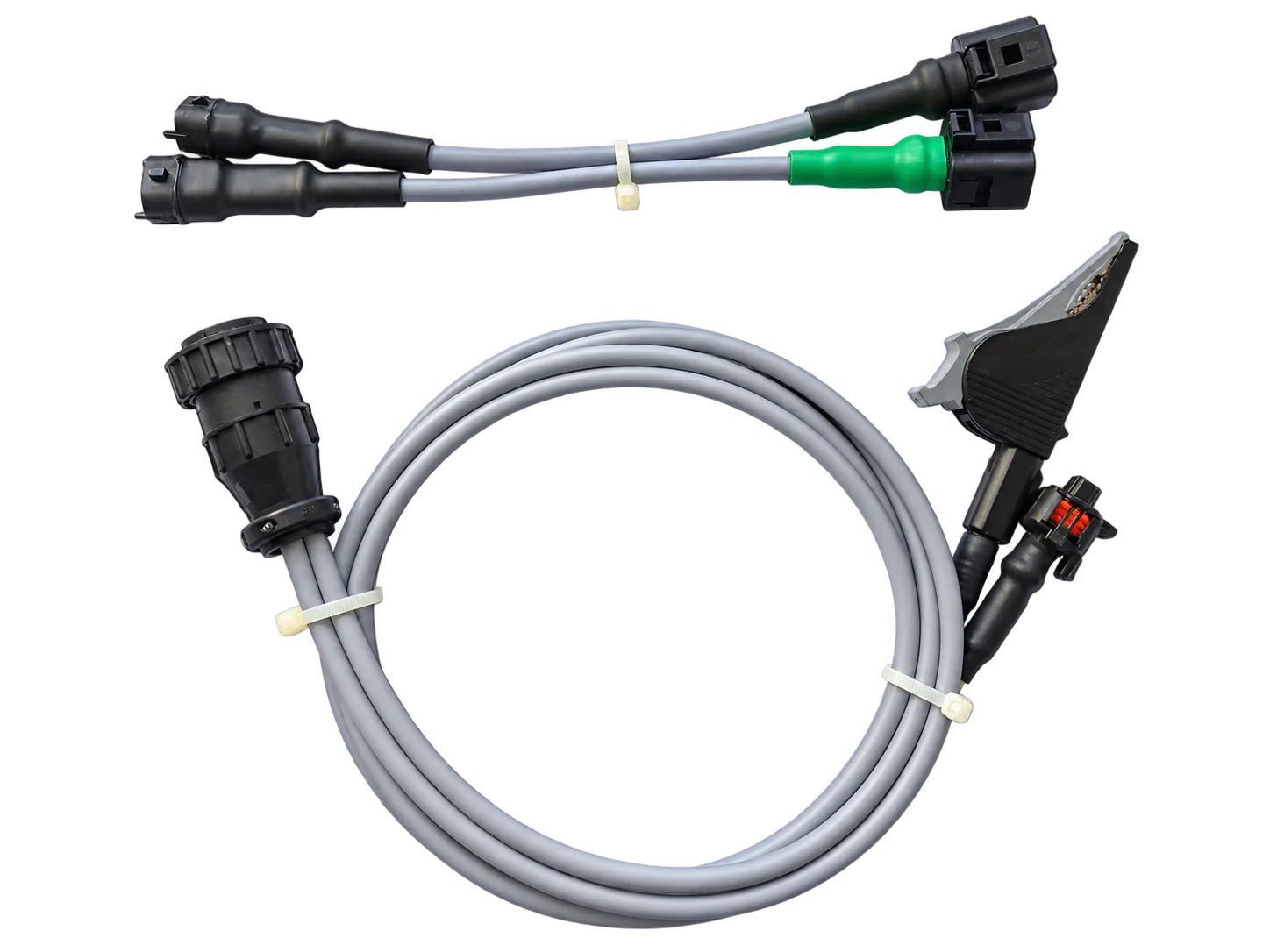

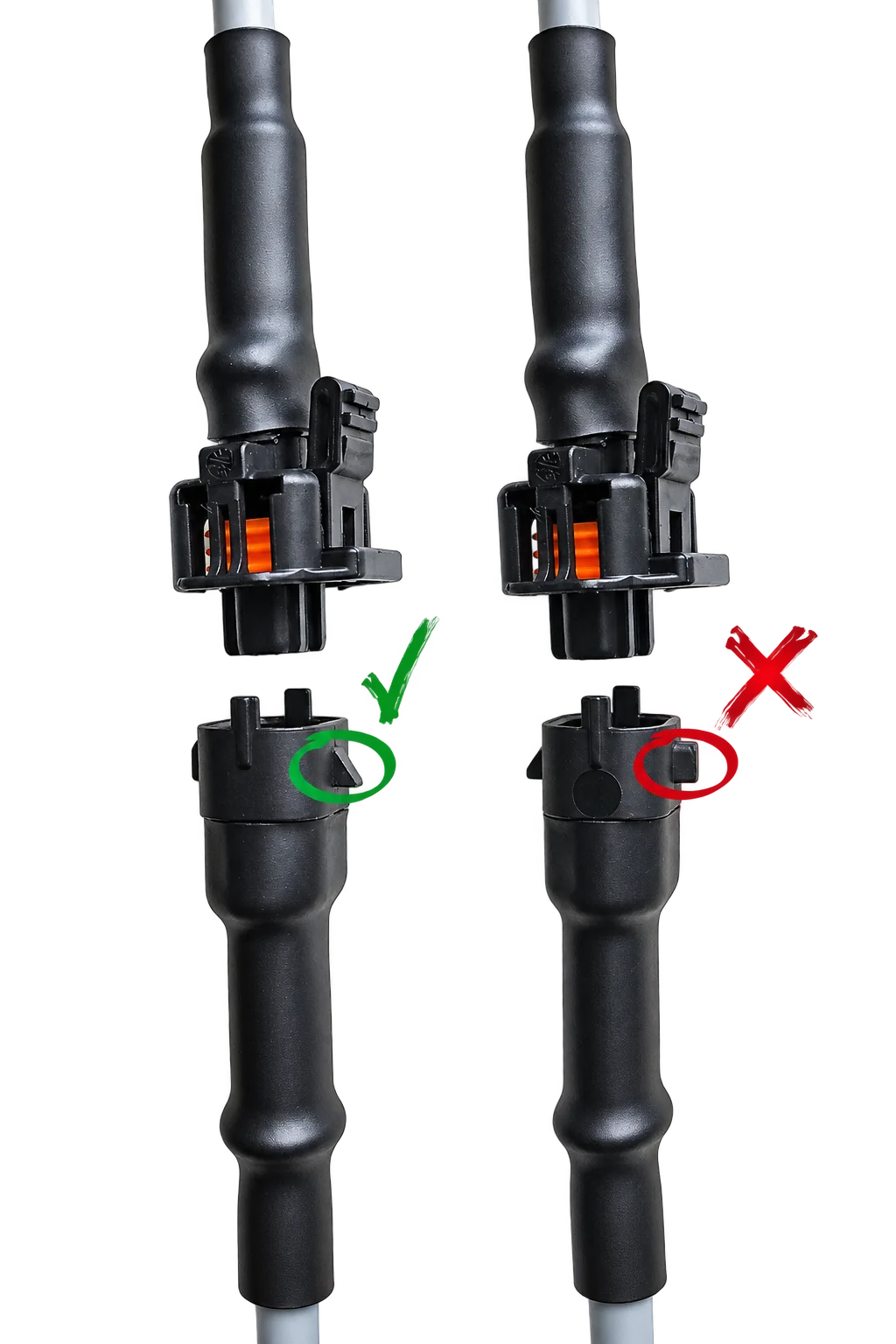

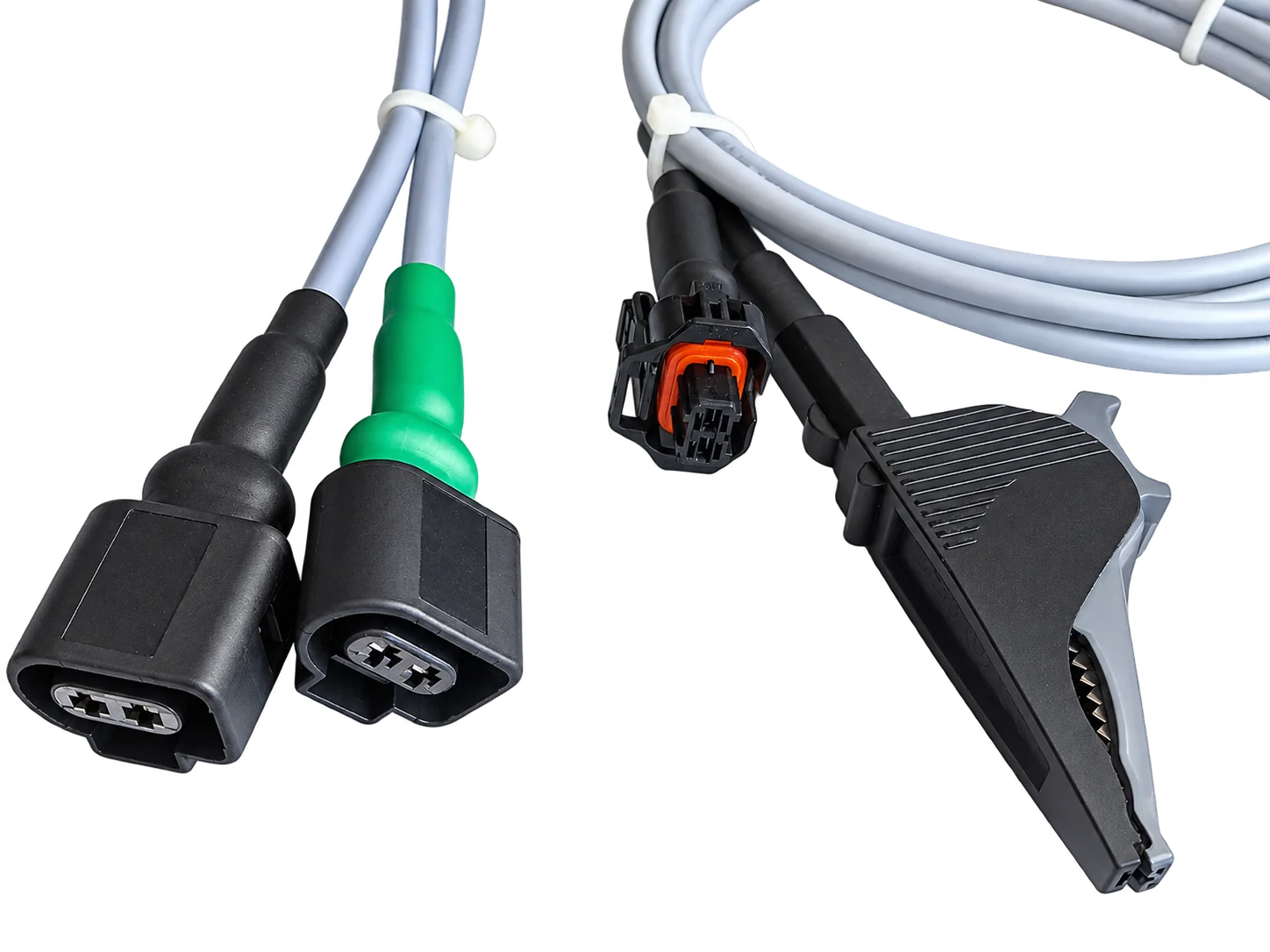

Device Overview

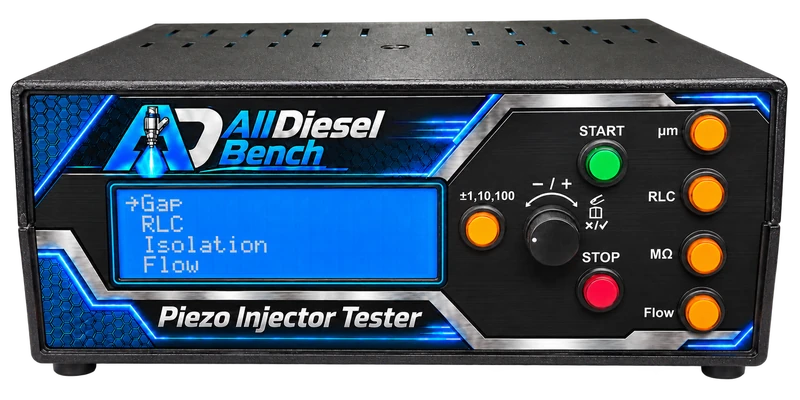

The AllDieselBench Piezo Tester is a multifunctional device developed for working with Bosch, Siemens-VDO-Continental and Denso piezoelectric injectors.

01 / SYSTEM

Device Features

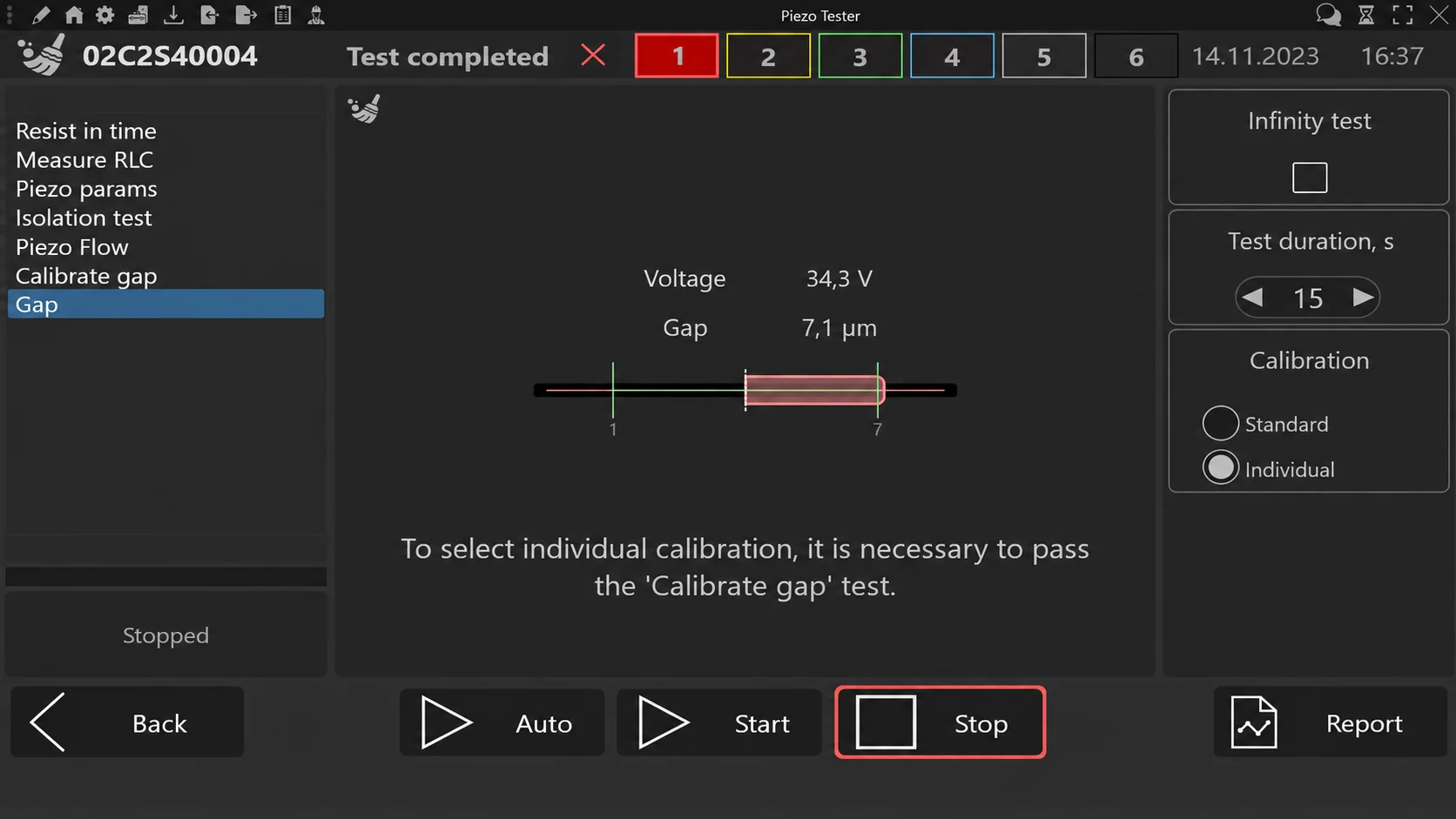

Precise adjustment of the required clearance during VDO injector assembly without the need for any additional equipment;

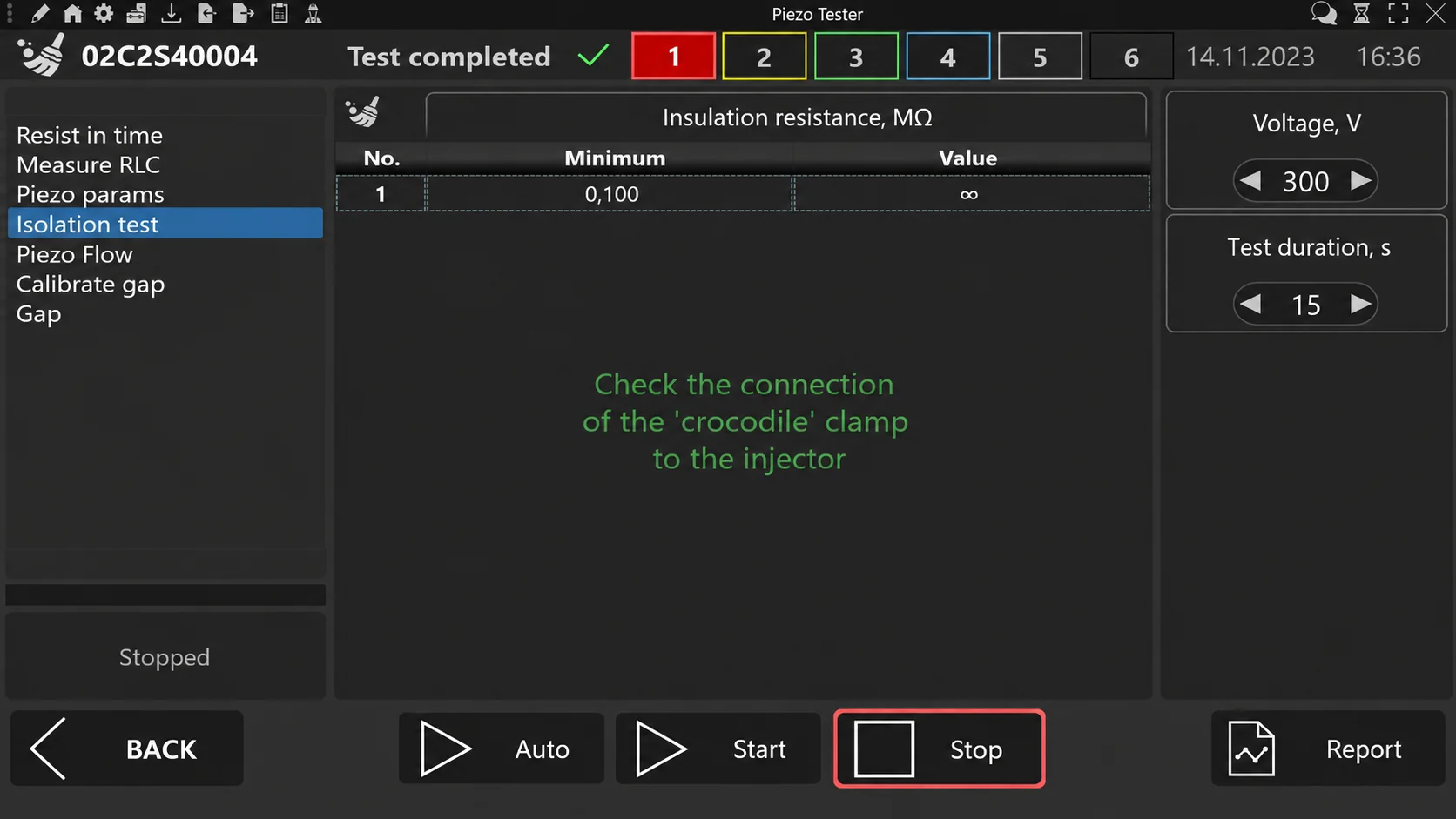

Measurement of insulation resistance at voltages up to 1000 V;
Measurement of piezo stack resistance and capacitance using AC voltage, in accordance with piezo injector manufacturer requirements, as well as on a pre-charged piezo stack at 20–130 V;
Operation with three 18650-type rechargeable batteries. This allows injectors to be tested without removing them from the vehicle and without requiring a 220 V mains connection;

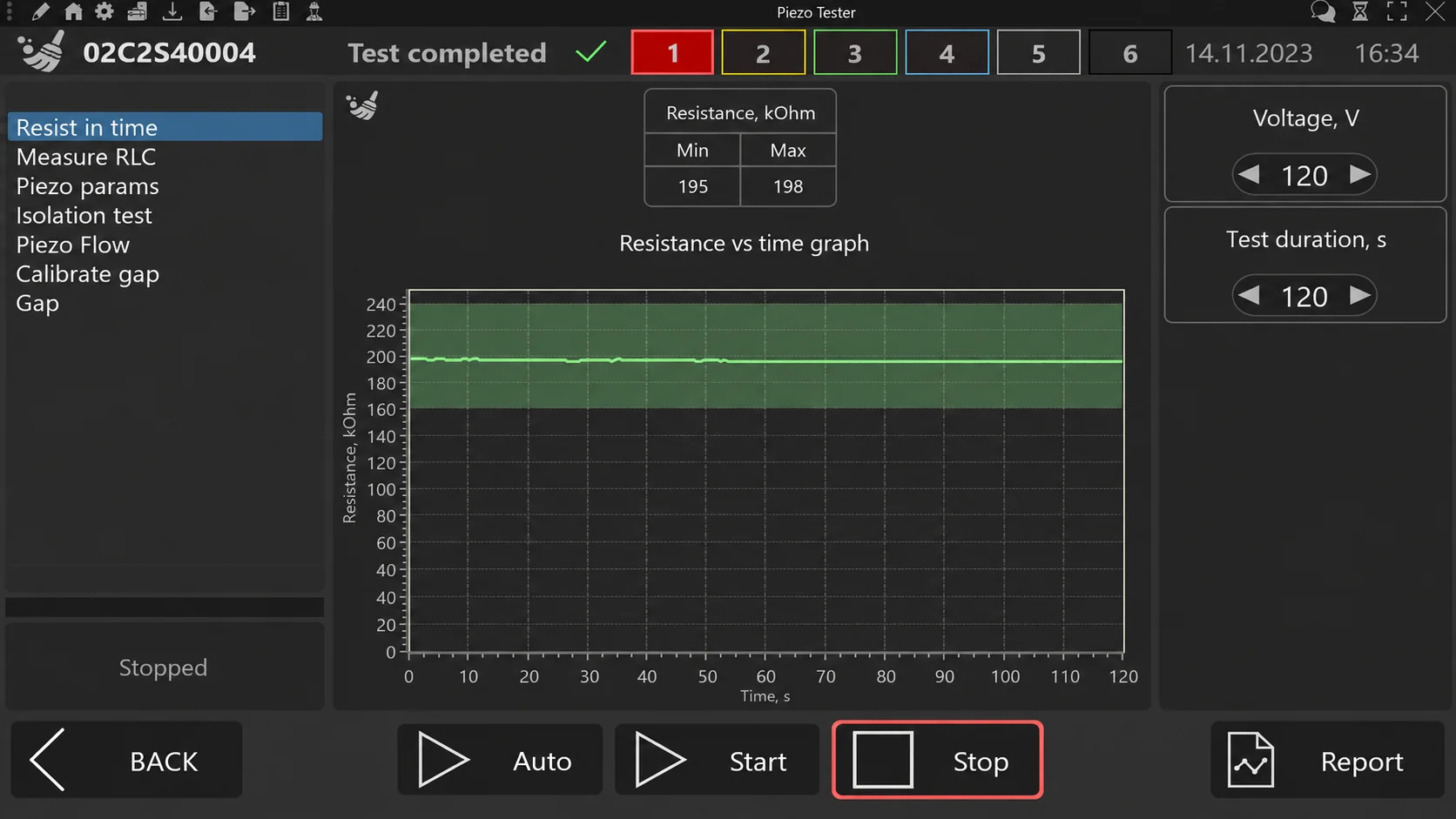

Graphical display of changes in piezo stack electrical resistance over time;

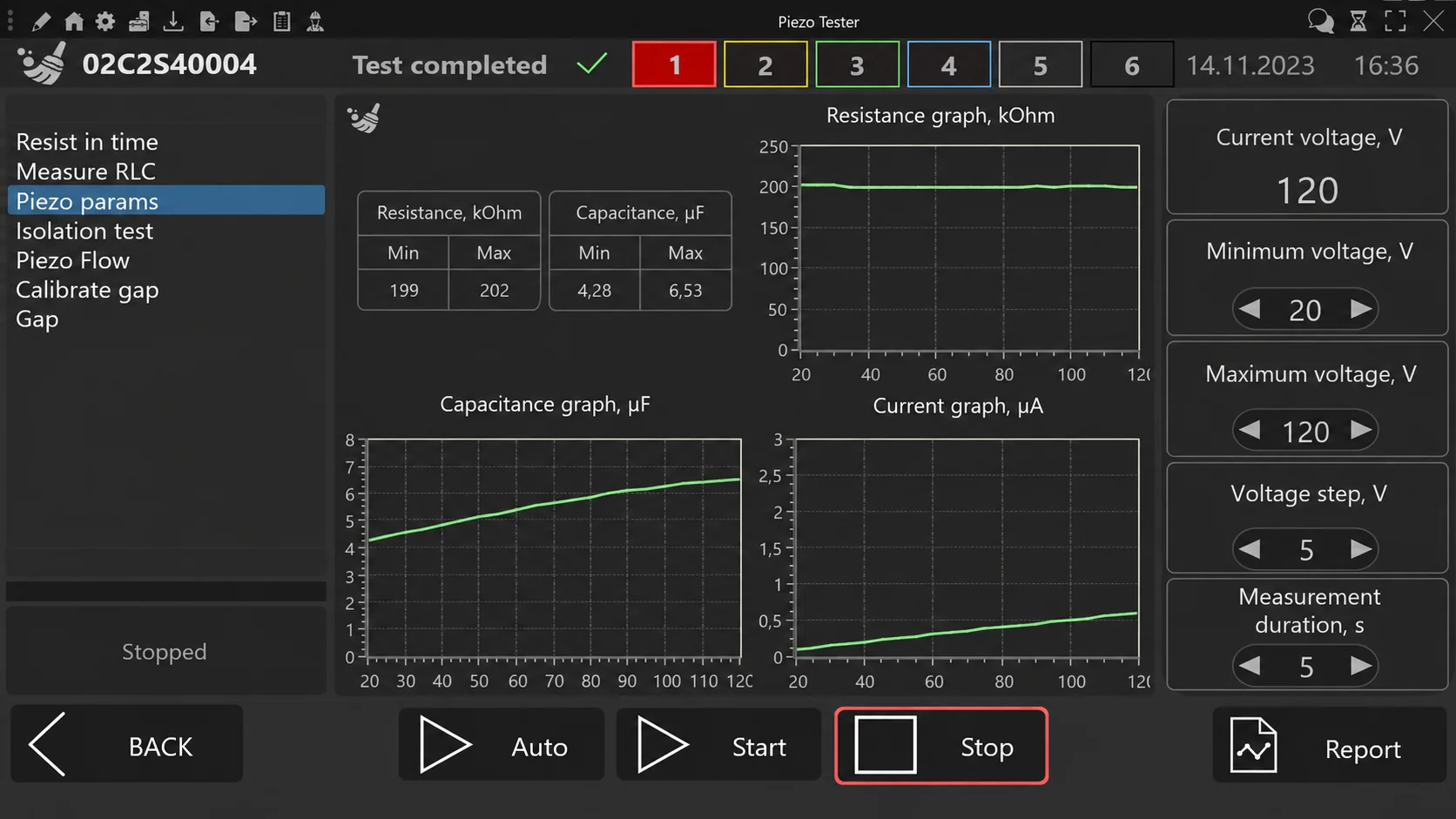

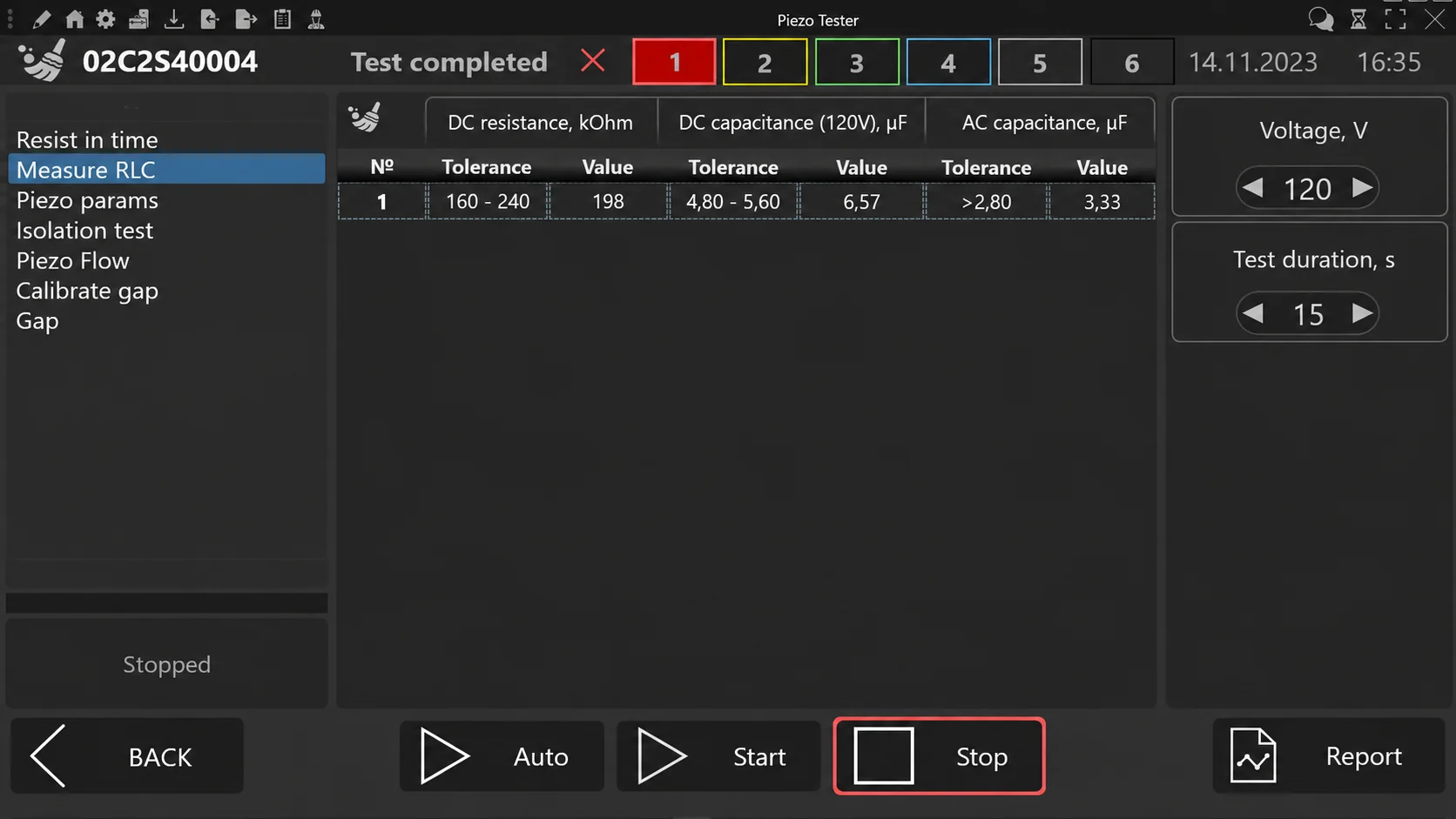

Generation of resistance and capacitance measurement graphs for the piezo stack at different applied voltages;

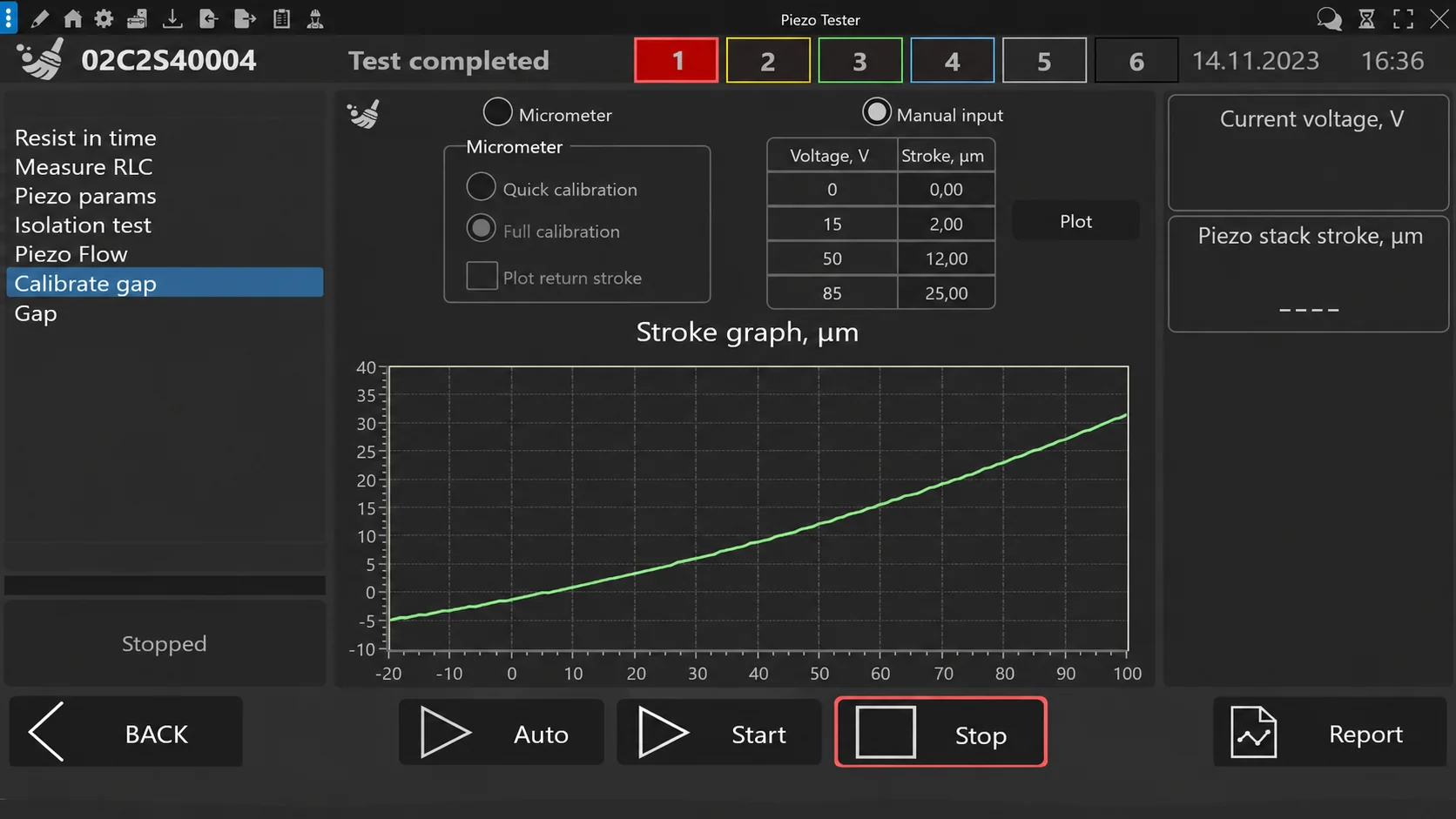

When used together with a wireless digital indicator gauge, the system allows measurement of piezo element travel at different applied voltages and generation of corresponding graphs;

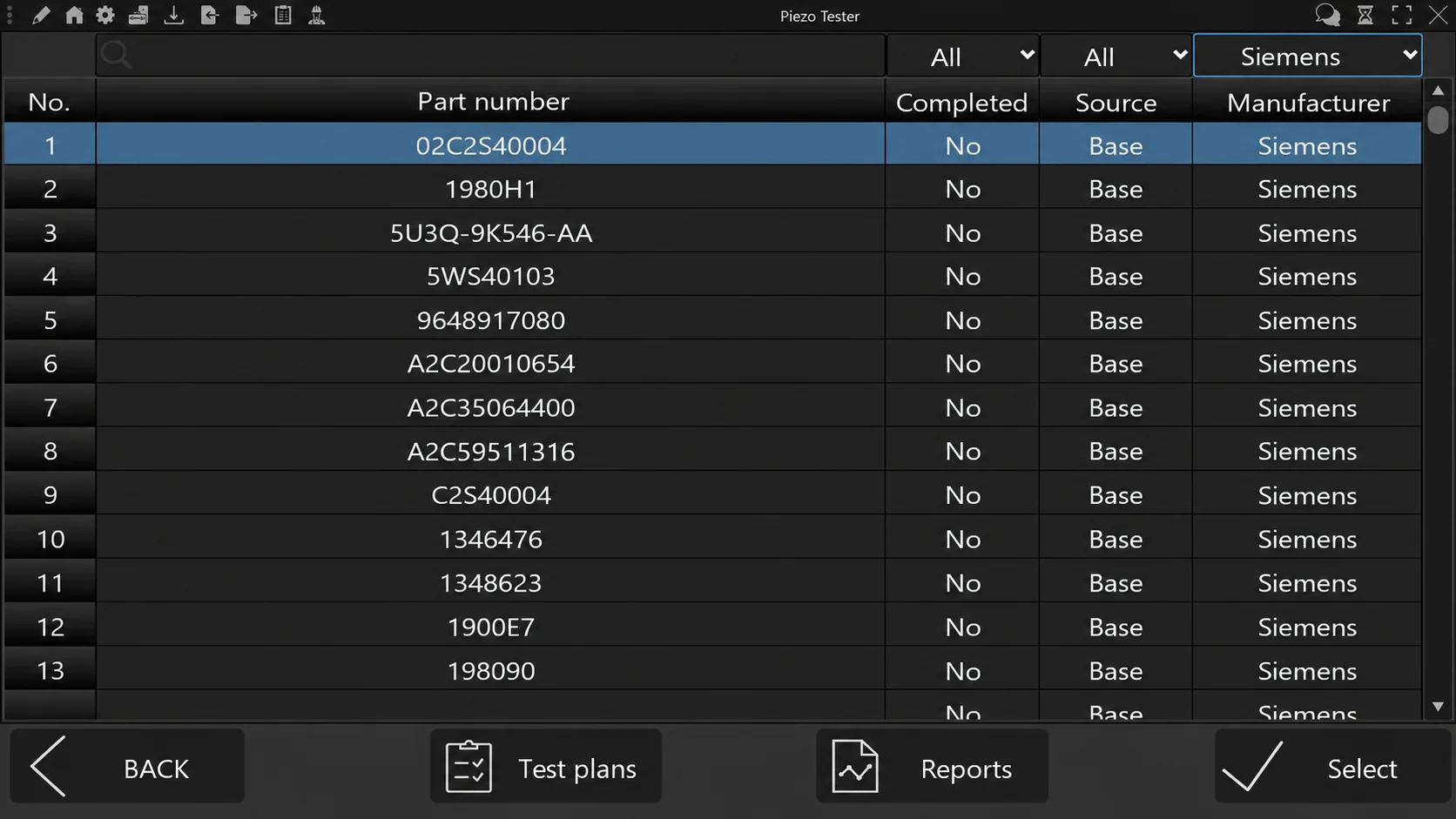

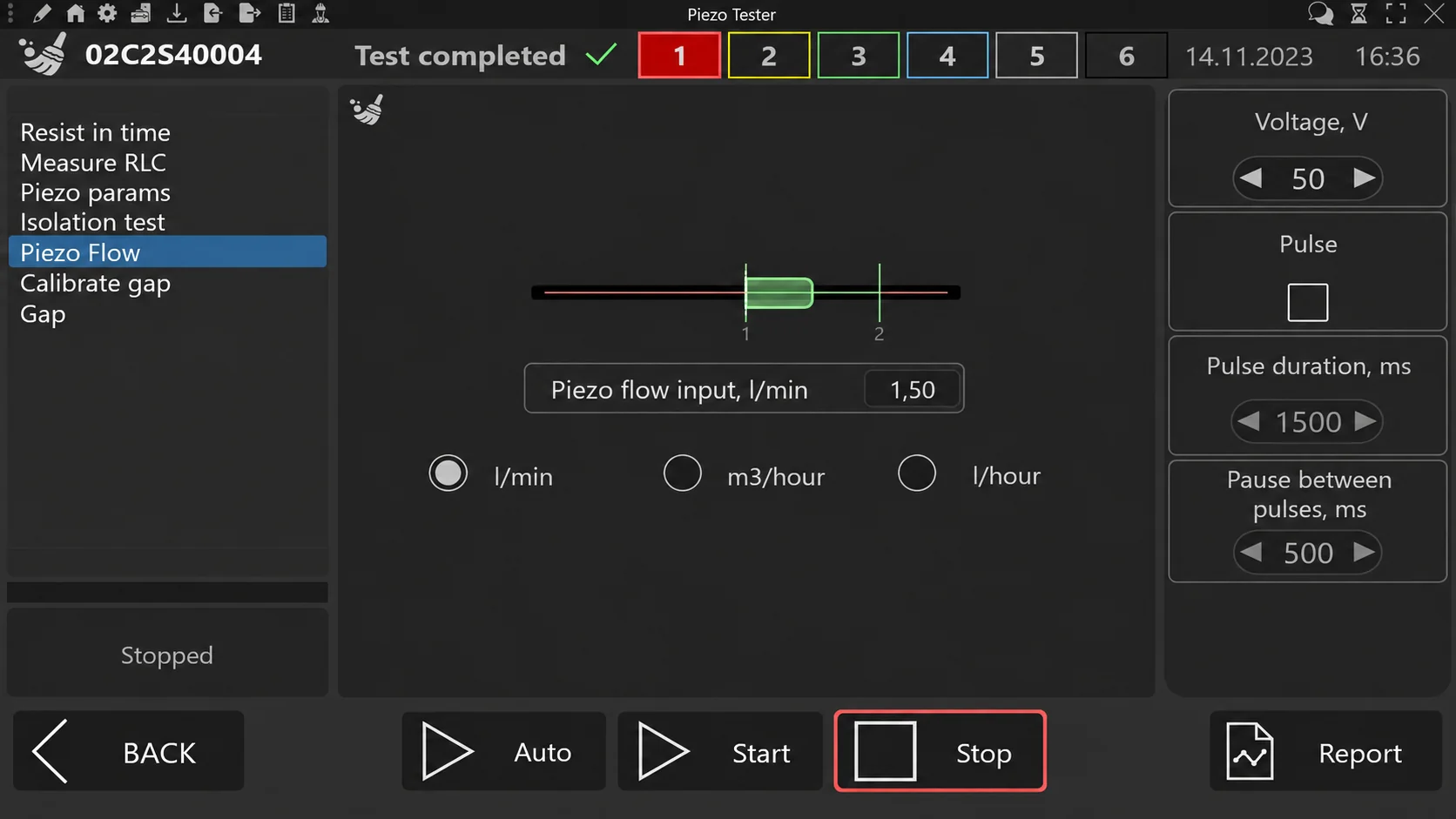

Test plan database with the ability for users to add and modify test plans;

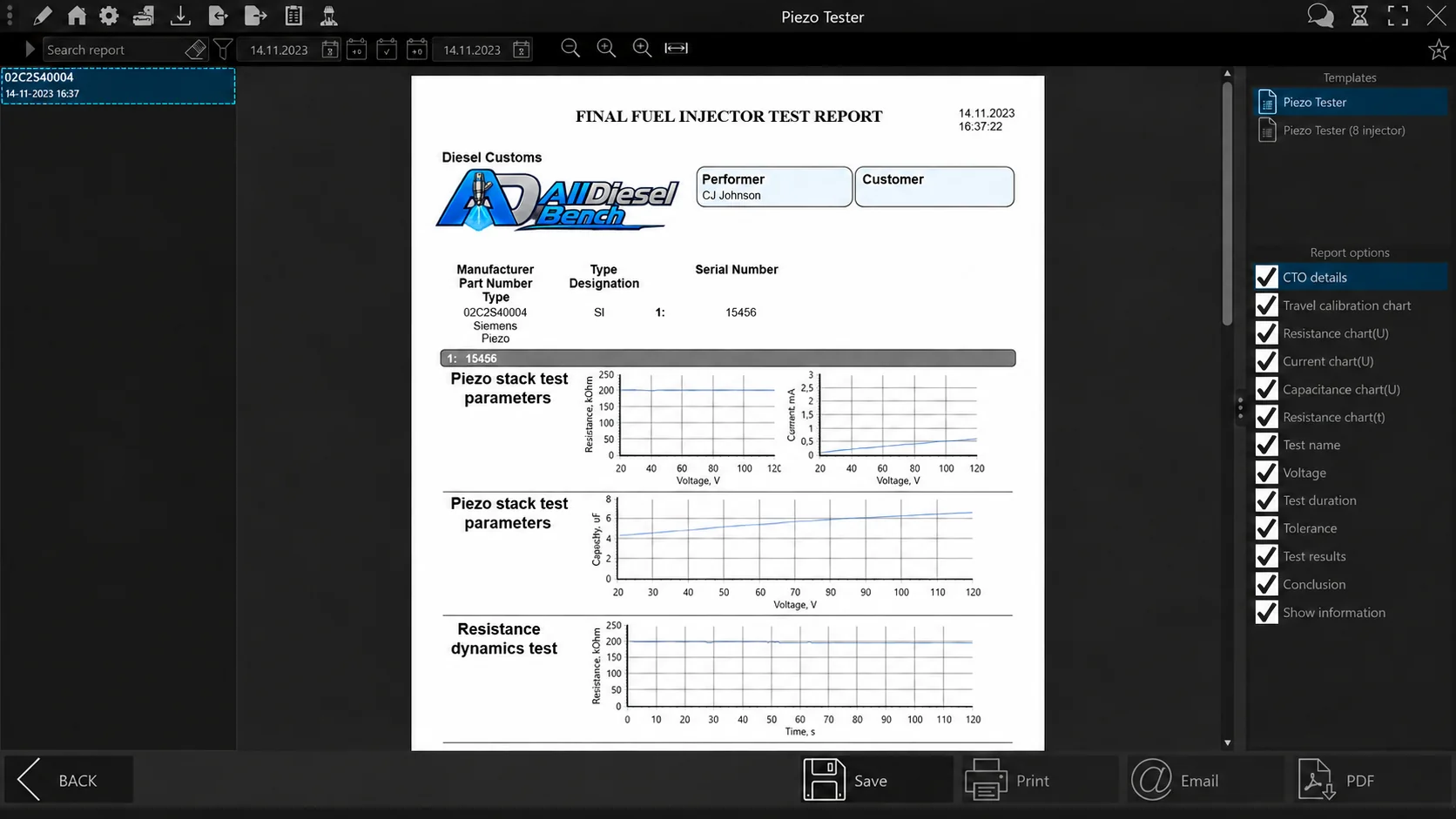

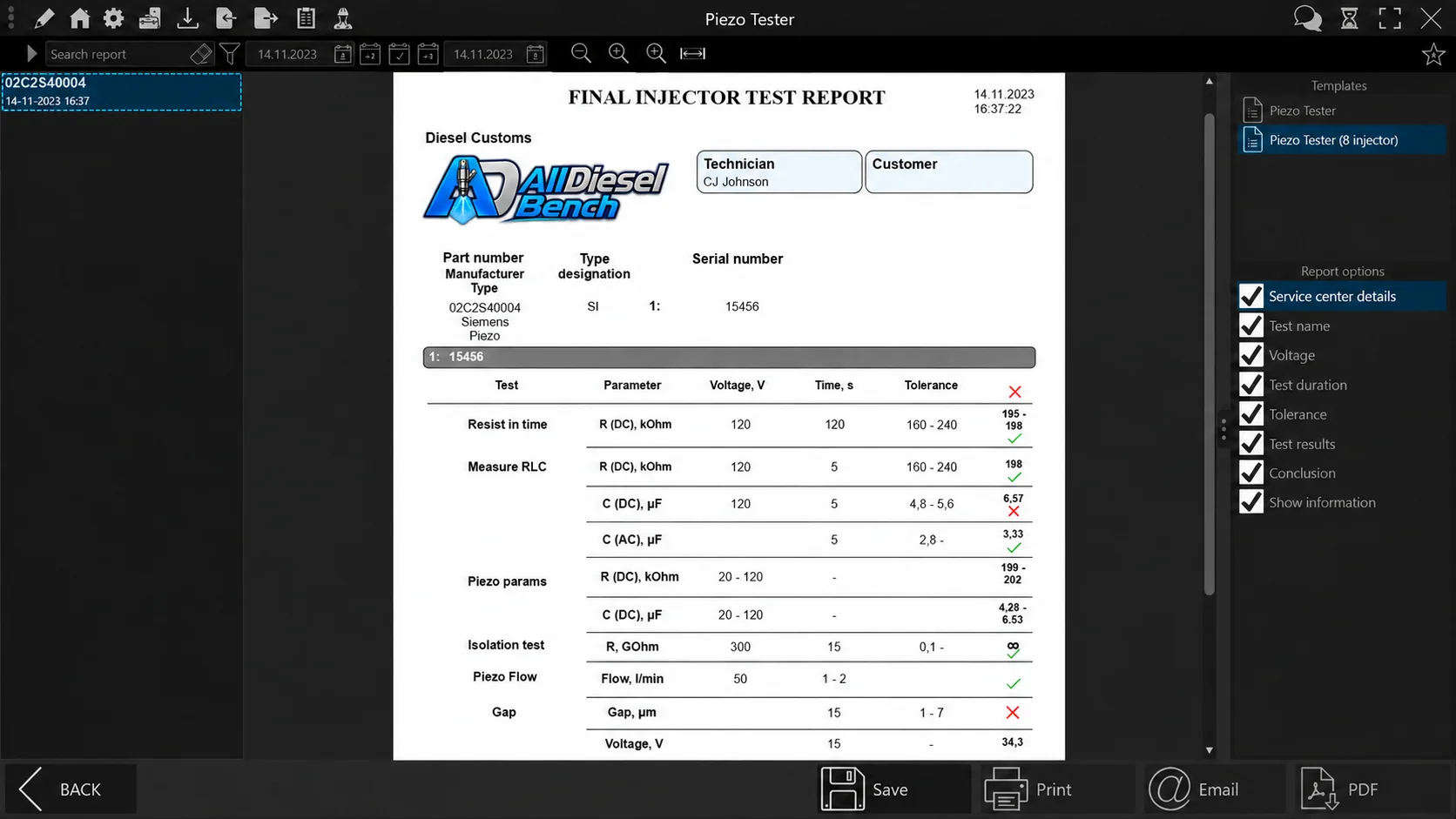

Database for storing injector test results with the ability to generate reports in various formats;
The device can be operated either through the physical control buttons on the unit or via the Windows-based AllDieselSoft software.
