AllDieselBench VP Tester – VP44 / VP30 / VP29 Pump Tester

AllDieselBench VP Tester is an electronic control and diagnostic device designed for testing, controlling and adjusting Bosch VP44, VP30 and VP29 diesel fuel injection pumps equipped with PSG5 and PSG16 control units on a suitable external test bench.

Device Overview

The PC software enables fuel delivery and injection timing control via the CAN bus, operating data monitoring and test report generation. Supported PSG5 applications also allow fault code reading and clearing, correction coefficient adjustment and control unit programming.

The device is used with a computer and a suitable test bench that provides the mechanical drive for the pump. Available functions depend on the pump model and control unit type.

01 / SYSTEM

Control and Diagnostic Functions

Control of pump fuel delivery via the CAN bus.
Injection timing system control according to test plans or user-defined operating modes.
Operation with EPS815 test plans and user-defined test modes.
Display of target and actual injection timing values and timing control valve duty cycle.
Monitoring of the BIP signal measured by the pump control unit.
Monitoring of dynamic CAN faults and their occurrence counts during testing.
Generation of pump test reports.
Assistance in determining the pump shaft position for locking or pulley installation according to the applicable reference values.
Reading of pump control unit identification data in supported PSG5 applications.
Reading and clearing of stored fault codes with descriptions in supported PSG5 applications.
Inspection of PSG5 start-up self-diagnostic status, including faults associated with the EEPROM, transistor, metering unit, CAN and other components.
Reading and writing of correction coefficients associated with injection and fuel delivery in supported PSG5 applications.
PSG5 configuration changes and programming of new PSG5 control units for the relevant pump number in supported applications.
Rapid test-bench calibration and reset functions for supported Ford pump applications.
Investigation of power transistor faults, sticking metering valves and short circuits using the oscilloscope probe.

Operation with VP44–PSG16 pumps requires an additional PSG16 Tool, and the pump must be switched to test-bench mode. PSG16 Tool is not included in the standard delivery.

02 / DELIVERY SCOPE

Standard Delivery Contents

Item	Qty.
AllDieselBench VP Tester Main Unit	1
Computer Connection Cable	1
Pump Connection Cable with PSG5 Connector	1
Oscilloscope Probe	1
720p Encoder	1
Knock Sensor	1
Software Download Link	—

03 / IMAGES

Standard Delivery Image

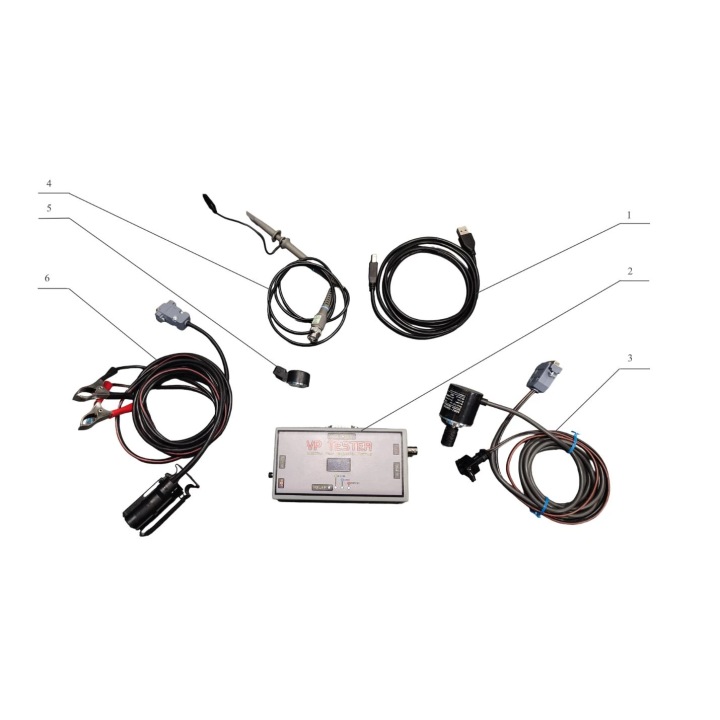

VP Tester — main unit, computer connection cable, PSG5 pump cable, oscilloscope probe, encoder and knock sensor

VP Tester main unit and standard connection accessories.

04 / COMPATIBILITY

Supported Systems and Operating Requirements

Bosch VP29 · VP30 · VP44 diesel fuel injection pumps. Support for PSG5 and PSG16 control units depends on the pump model, control unit and connection equipment used.

Feature	Description
Computer Connection	USB
Pump Control	CAN bus
Test Modes	EPS815 test plans and user-defined operating modes
Diagnostics and Programming	Identification reading, fault diagnostics, correction coefficient functions and programming in supported PSG5 applications
Operation with PSG16	Requires an additional PSG16 Tool and switching the pump to test-bench mode
Signal Analysis	Oscilloscope function using the supplied probe
Required Equipment	A suitable external pump test bench and a computer
Operating System Specified in the Manual	Windows 7 or later
Minimum Memory	2 GB RAM
Available Storage Space	1 GB
Minimum Screen Resolution	1280 × 724 pixels

Test plan requirements: When using EPS815 test plans, the test equipment and settings specified in the reference information for the relevant plan must be used.

Compatibility check: Before ordering, the pump number, PSG control unit type and connection arrangement of the existing test bench should be assessed together.

05 / SOFTWARE

VP Tester Software and Test Screens

The software brings together pump identification, user-defined test plans, EPS815 test steps, CAN fault monitoring and oscilloscope functions. The images below are taken from the screens and explanatory illustrations in the Turkish user manual.

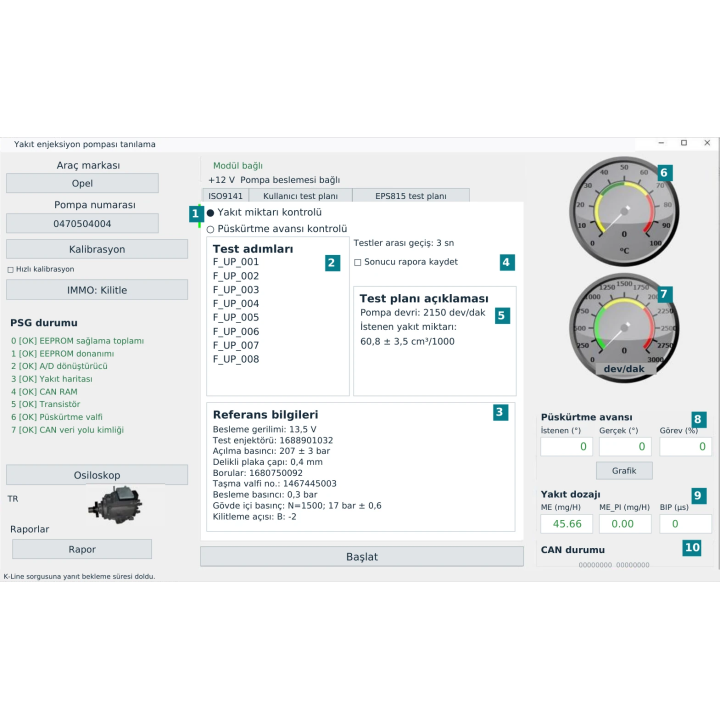

VP Tester — pump identification data, PSG status, correction coefficients and fault diagnostics

VP Tester — user-defined test plan, fuel delivery and injection timing control

VP Tester — EPS815 test steps, reference conditions and test data

VP Tester — manual illustration explaining dynamic CAN faults and event counts

VP Tester — oscilloscope, voltage-versus-time graph and signal analysis
