AllDieselBench CR Mini Pro Control Unit

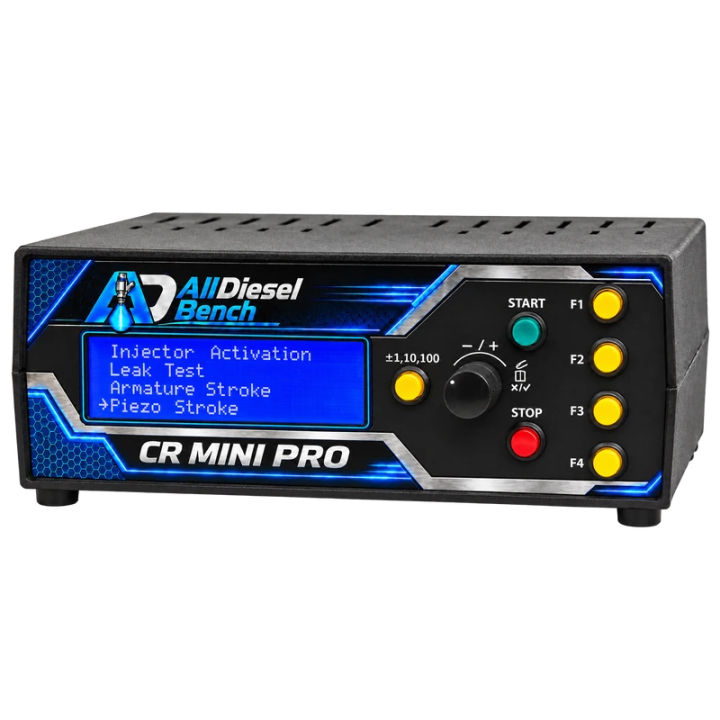

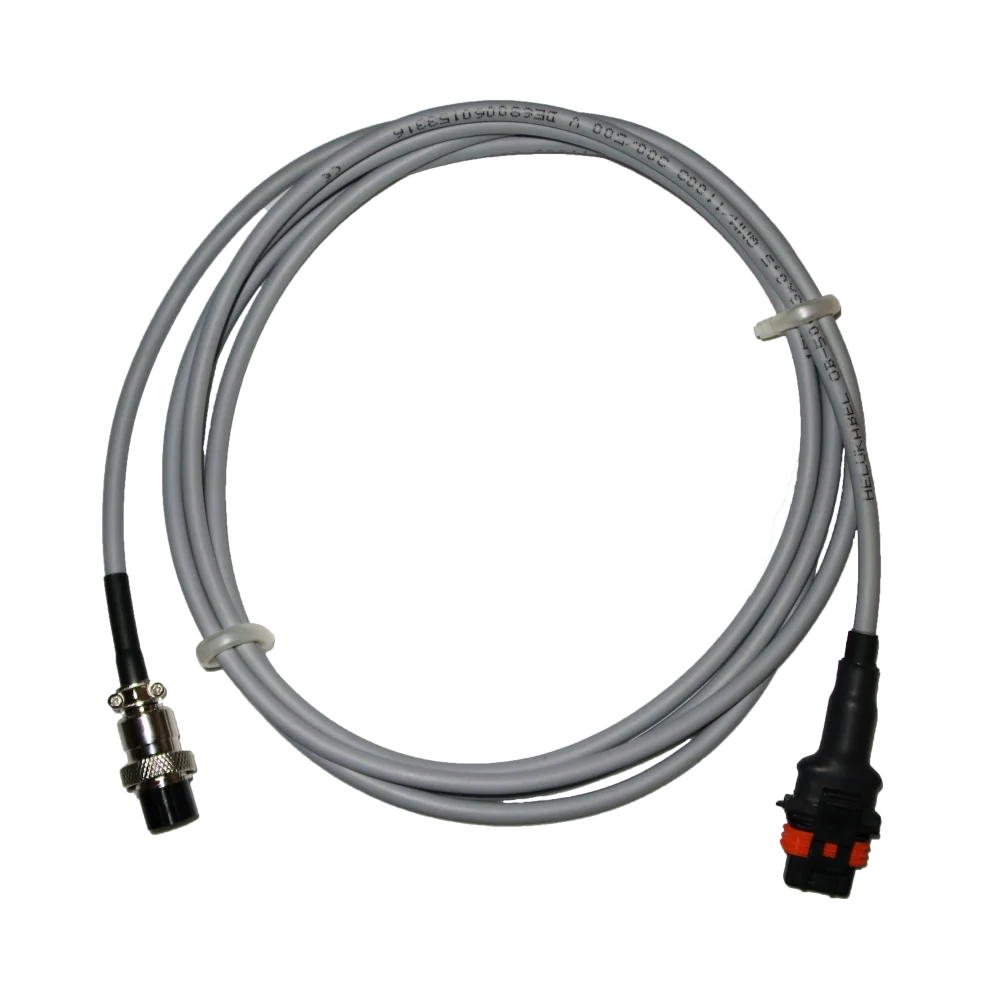

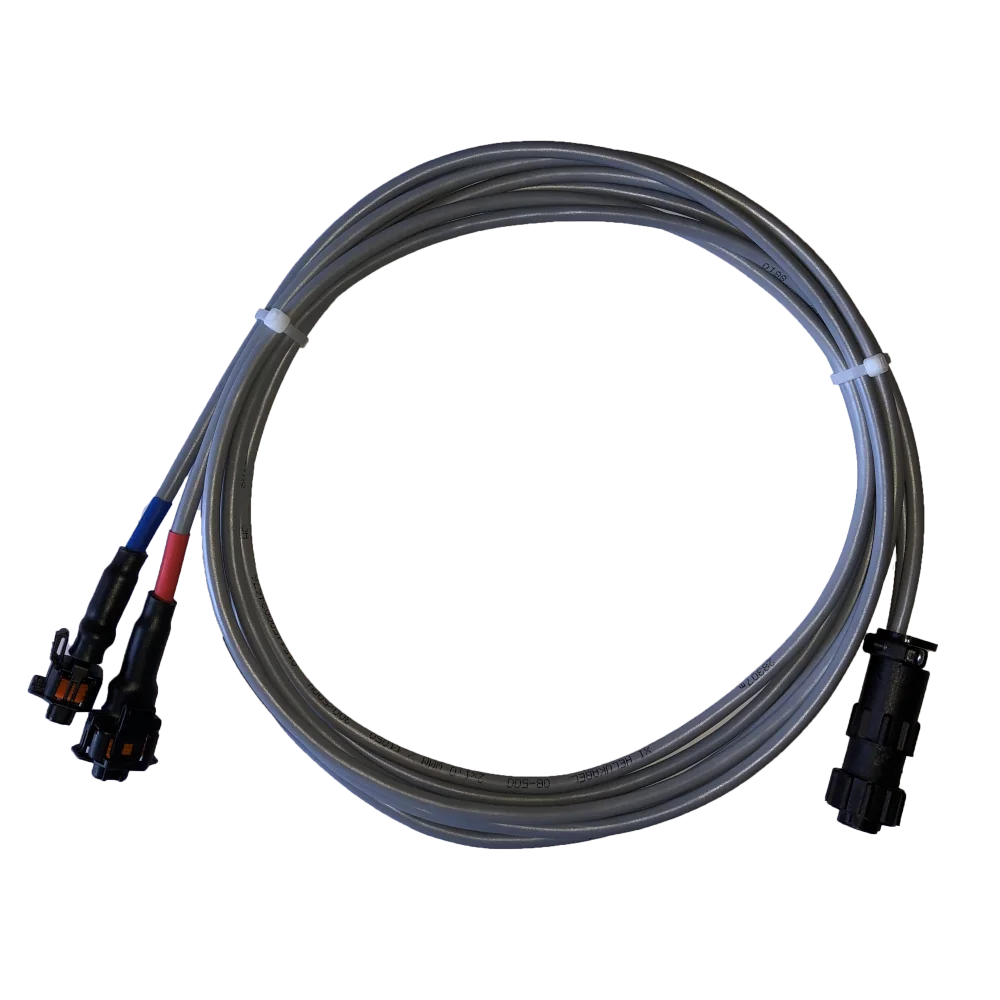

CR Mini PRO control unit is a multifunctional device designed for professional testing, control and diagnostics of solenoid and piezoelectric injectors, as well as fuel pressure regulators used in the fuel systems of passenger vehicles, commercial vehicles and special-purpose machinery from manufacturers such as Bosch, Denso, Delphi, Siemens, CAT and many others.

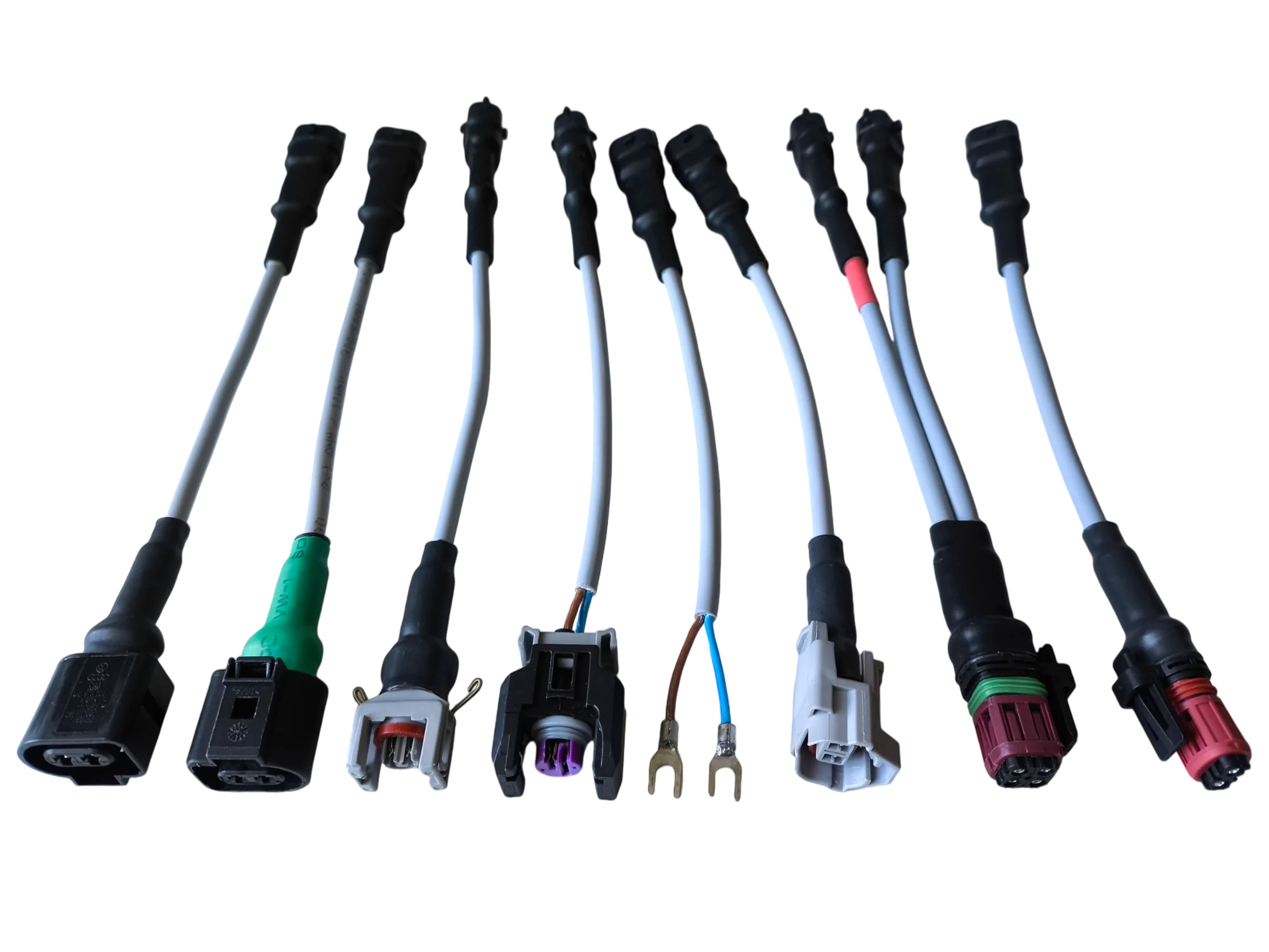

Device Overview

The control unit provides diagnostic functions for volumetric fuel delivery, spray pattern and spray intensity, resistance, inductance and capacitance (RLC) measurement, determination of the minimum nozzle needle opening pressure, and hydraulic leak-tightness testing. The device also allows measurement of armature travel, piezo stack travel and resistance, as well as determination of the opening and closing currents of solenoid and piezoelectric diesel injectors.

It can be used as part of a professional diesel test bench, for preliminary testing directly on the vehicle, or independently at a fuel-system specialist’s workstation — for example, on a workbench.

01 / SYSTEM

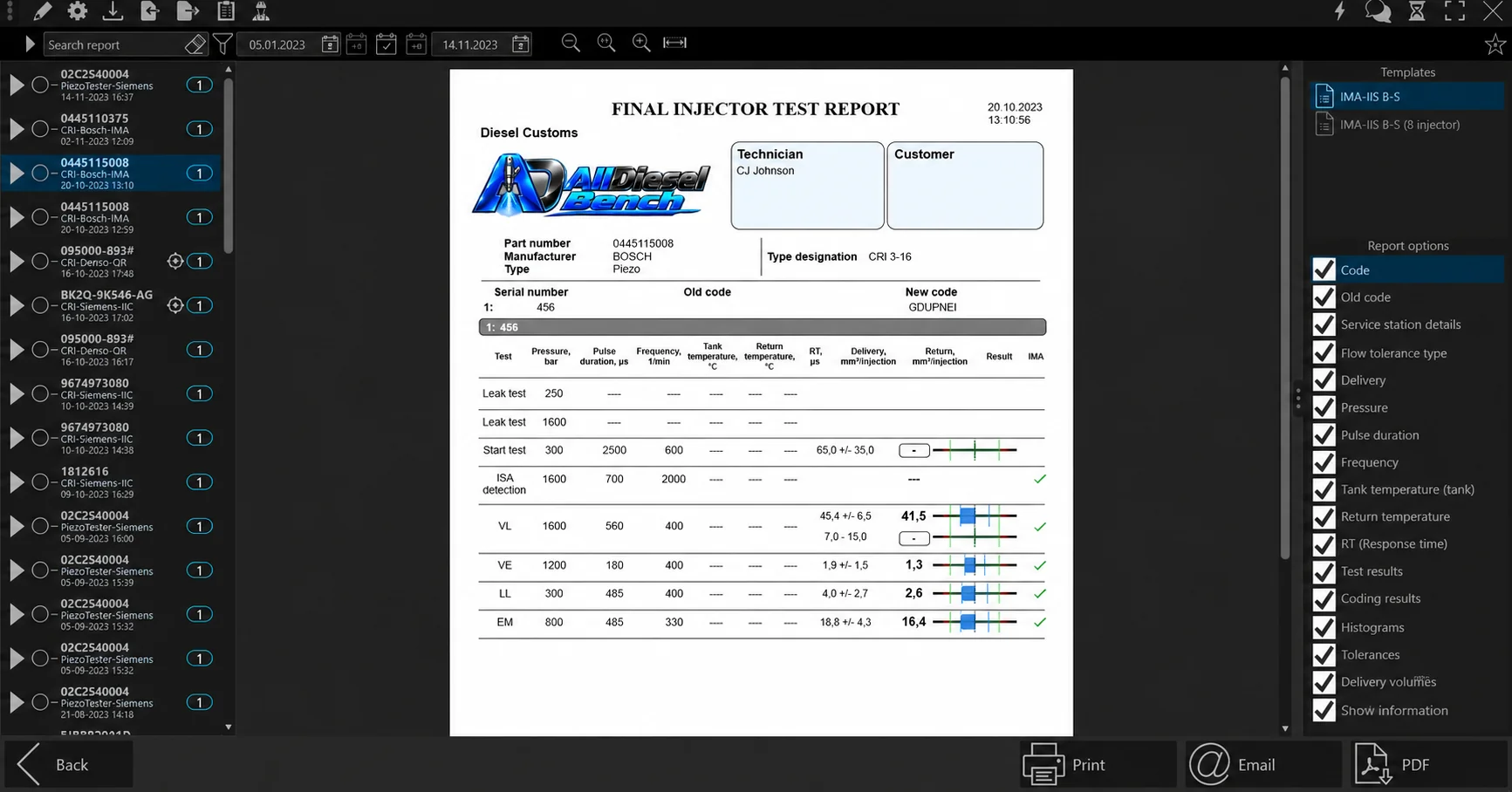

Control and Diagnostic Functions

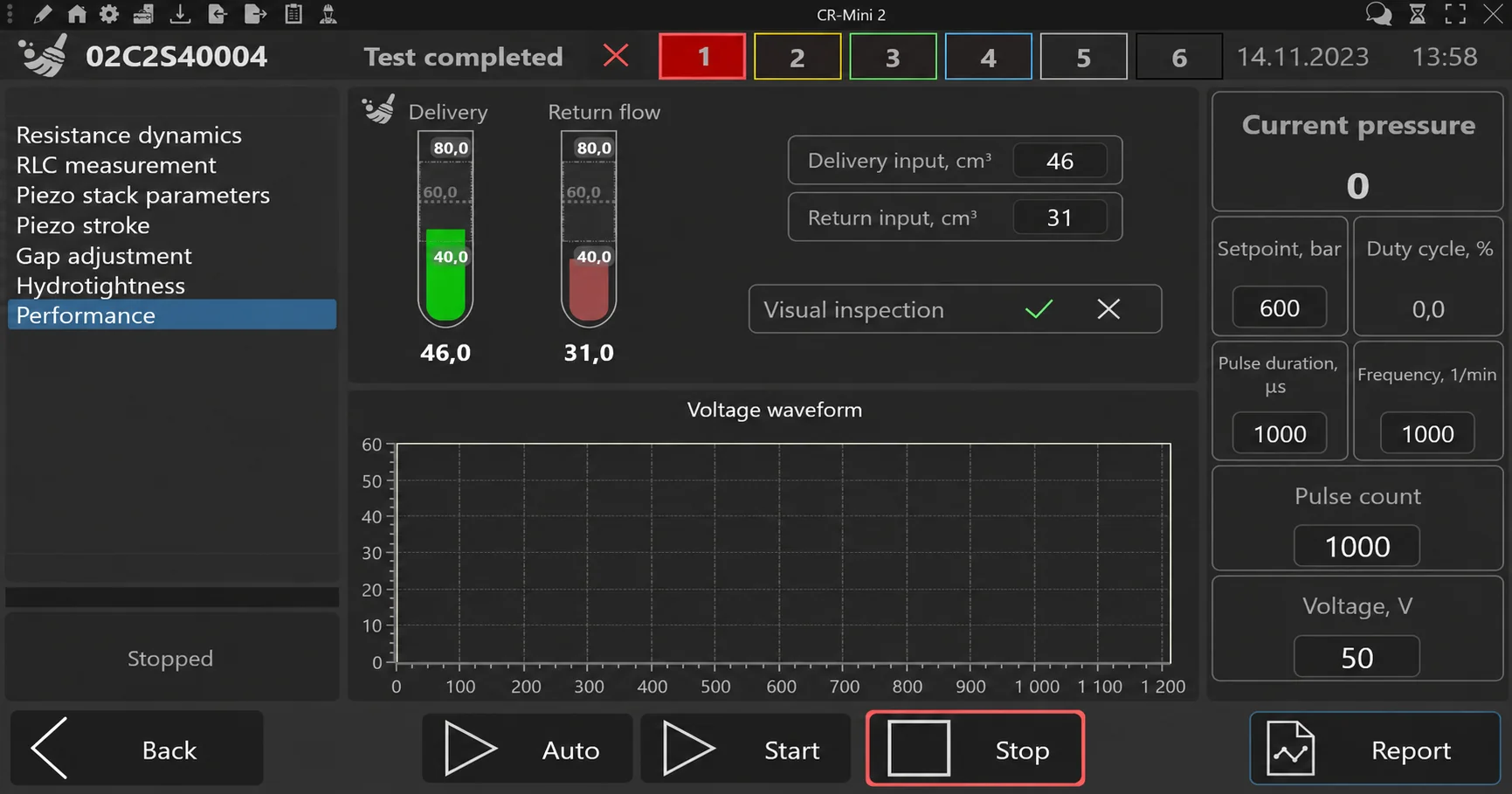

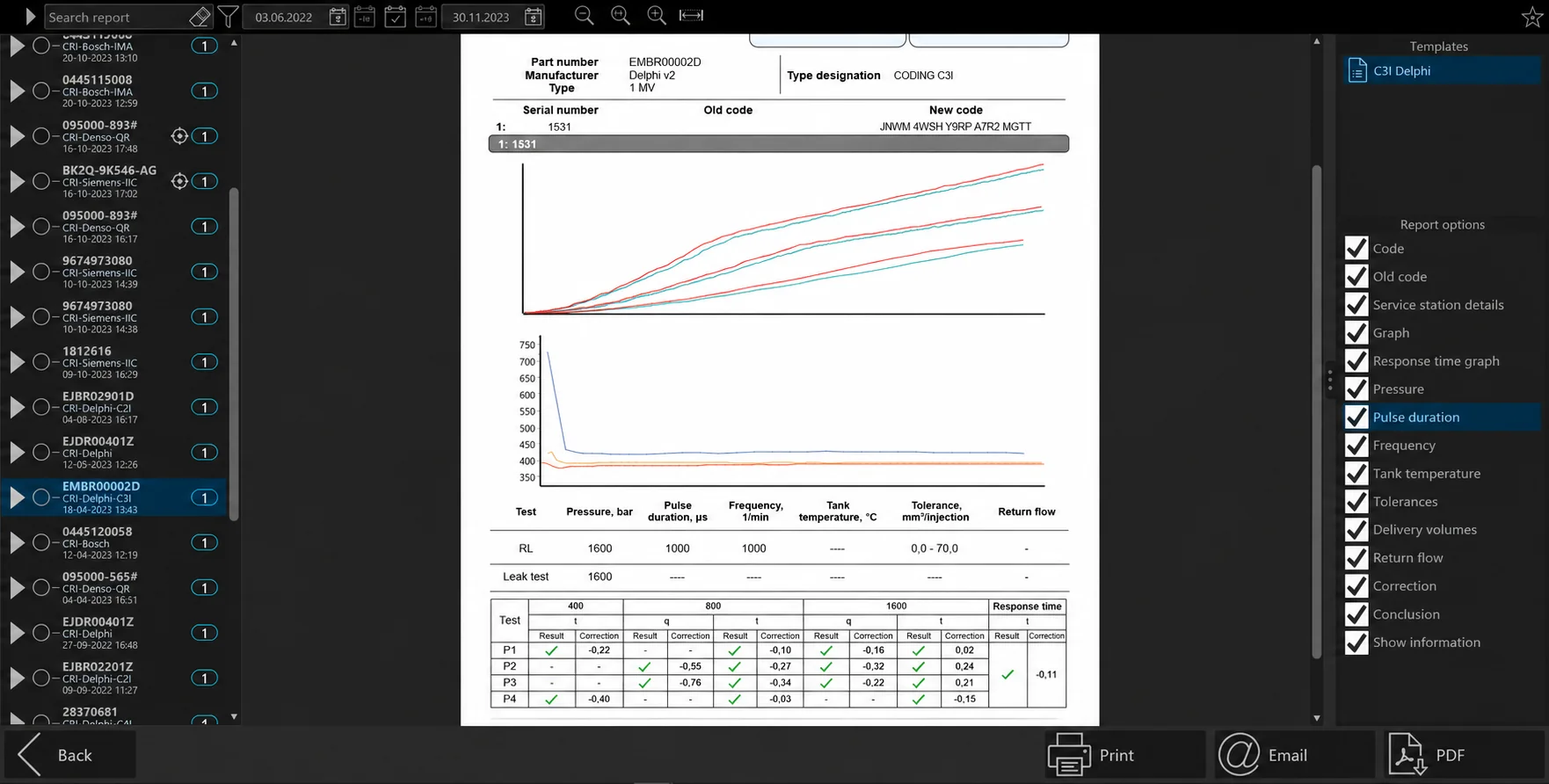

Single-channel injector actuation for measuring volumetric fuel delivery and evaluating spray pattern shape and intensity.

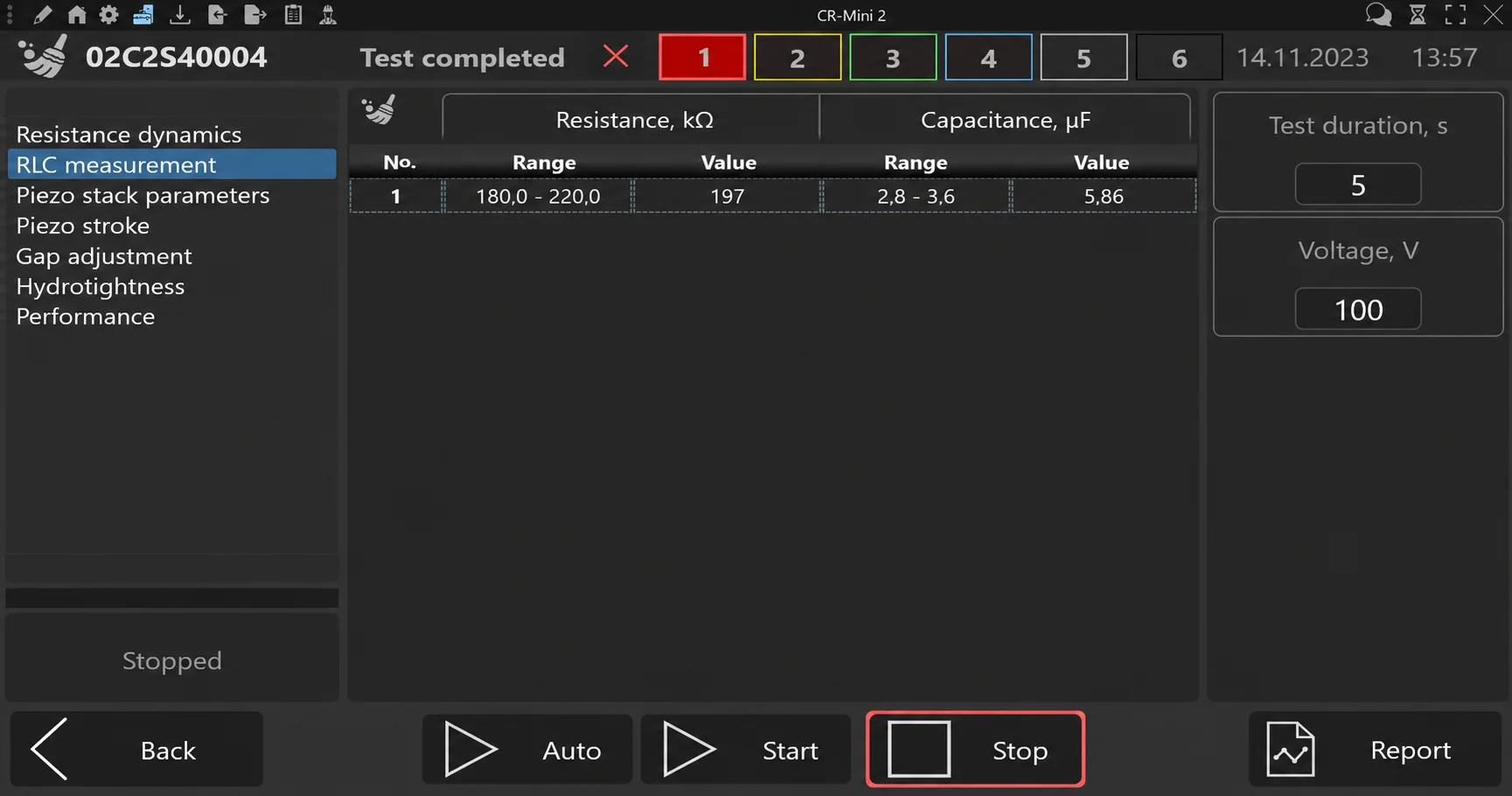

Measurement of solenoid valve resistance and inductance.

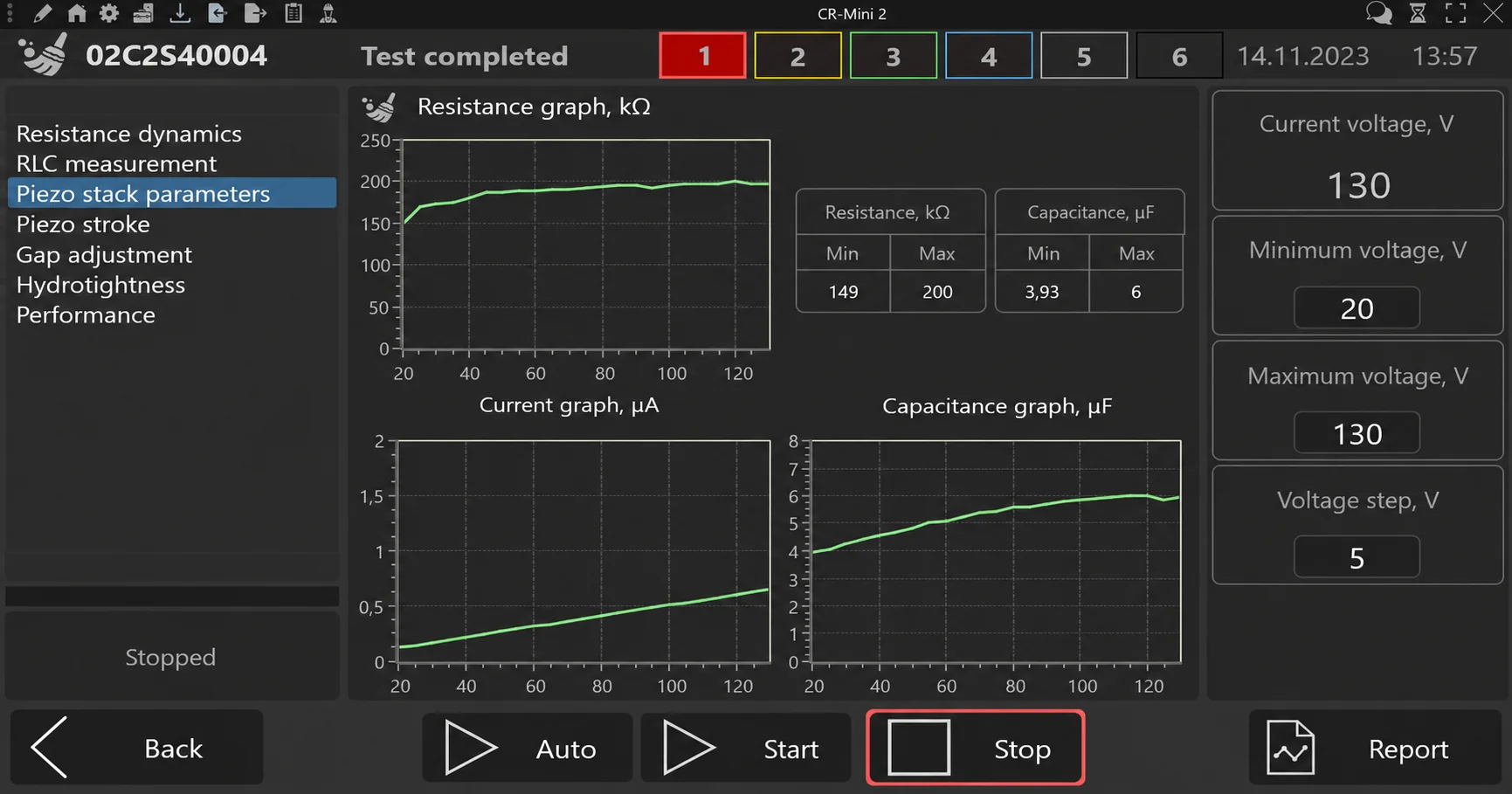

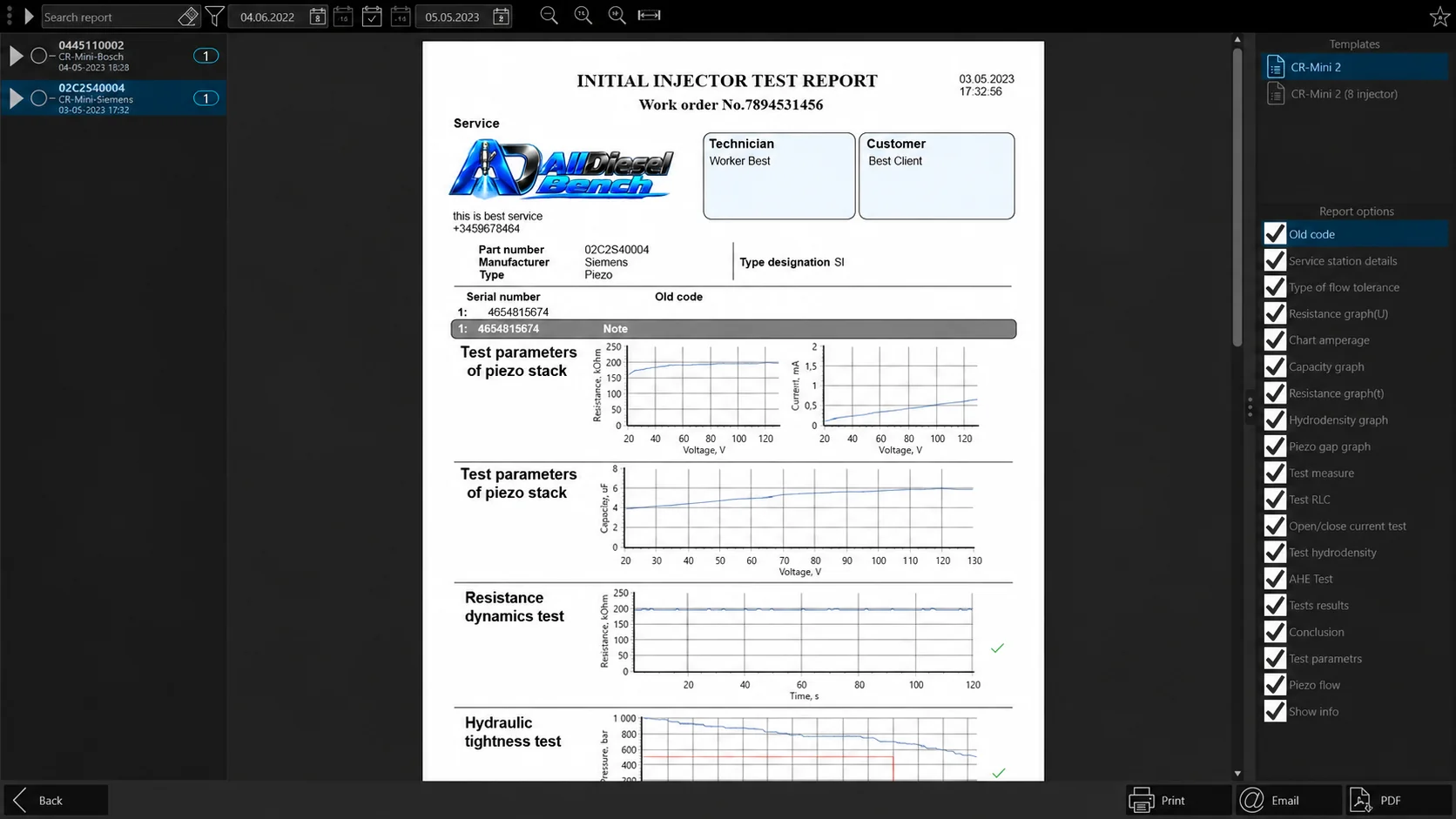

Measurement of piezo stack capacitance.

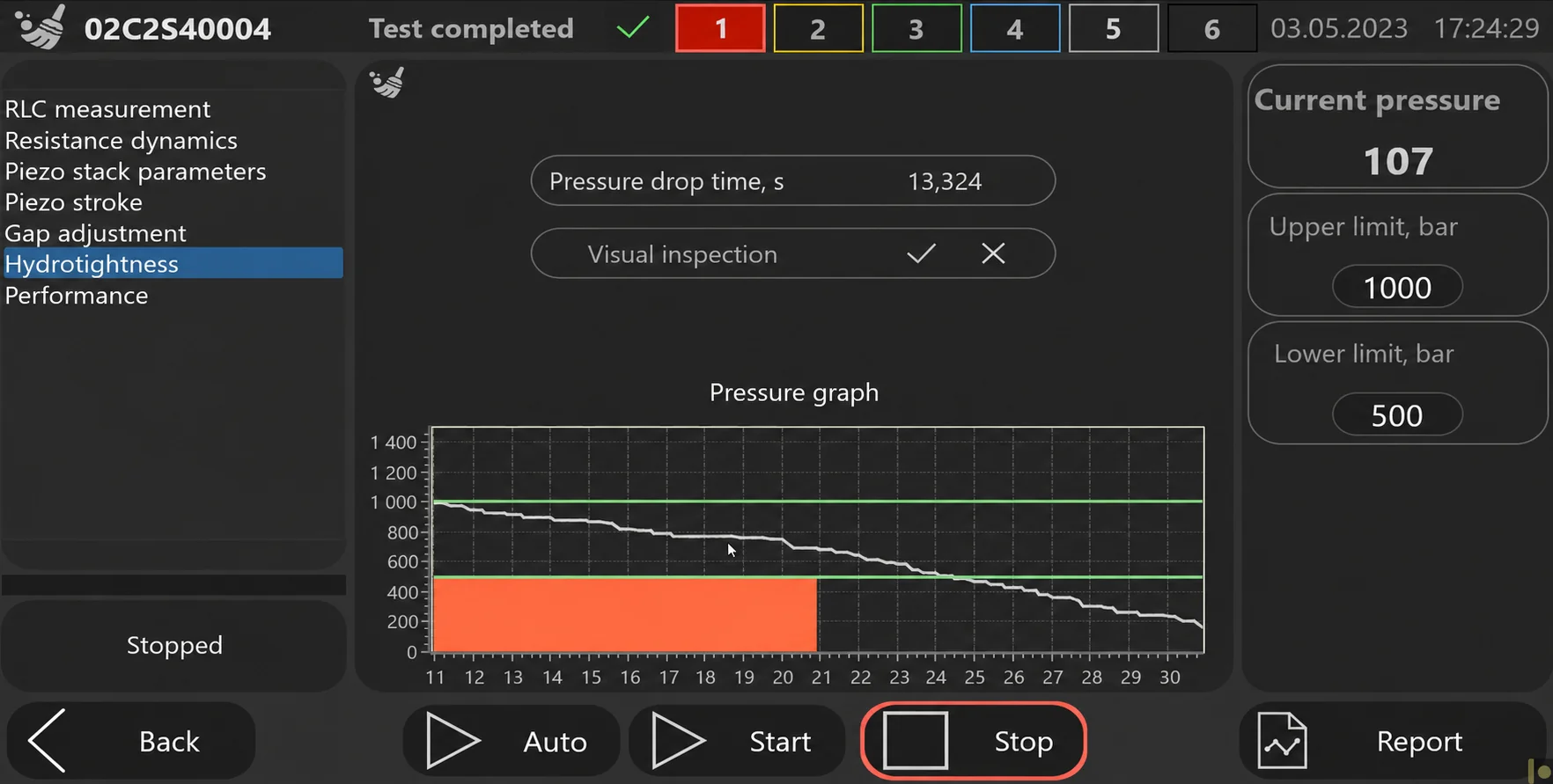

Injector hydraulic leak-tightness testing.
Application of adjustable current pulses for measuring armature travel using a dial indicator.

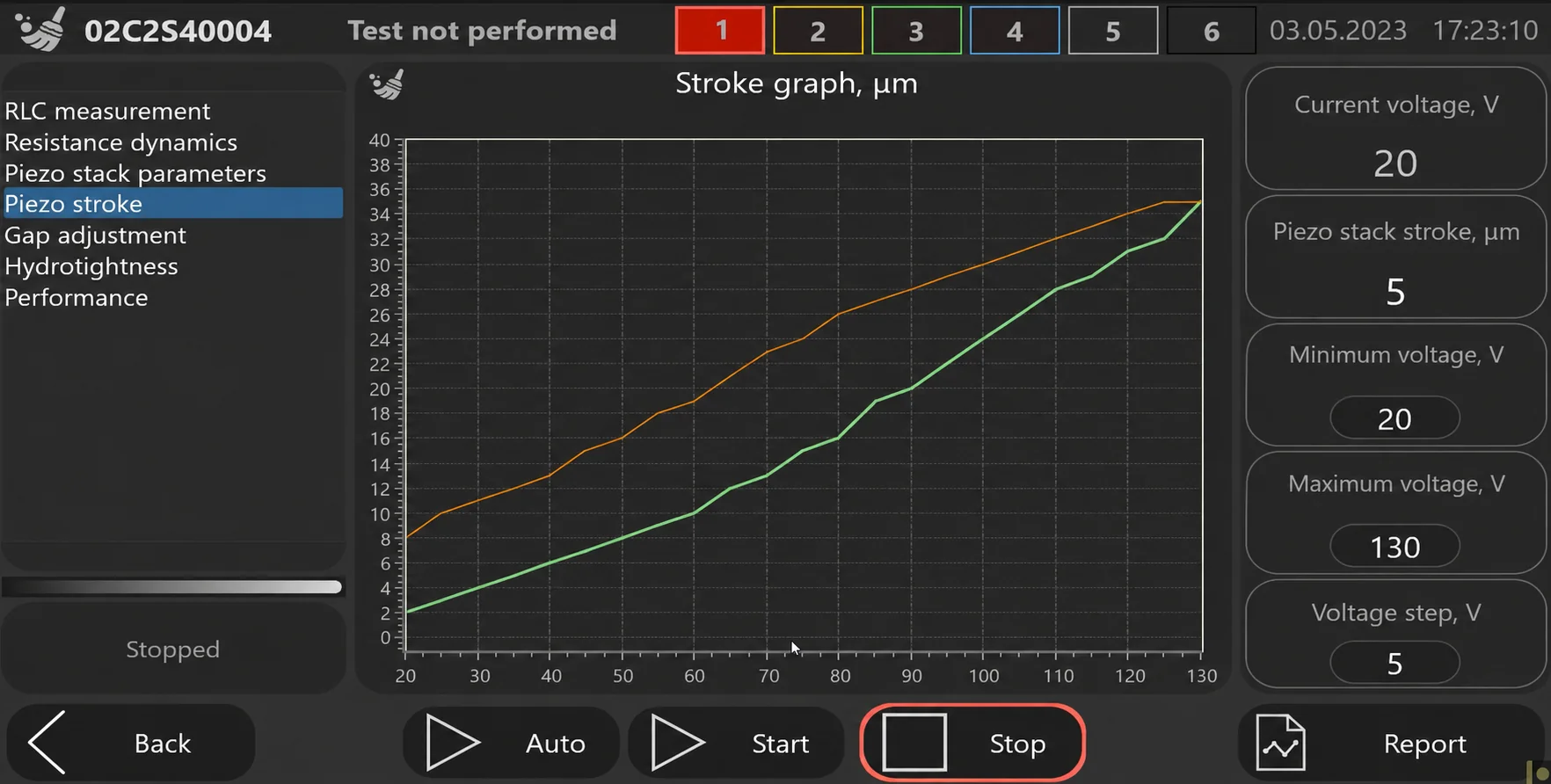

Application of adjustable voltage pulses for measuring piezo stack travel using a dial indicator.
Measurement of the current flowing through the piezo stack.

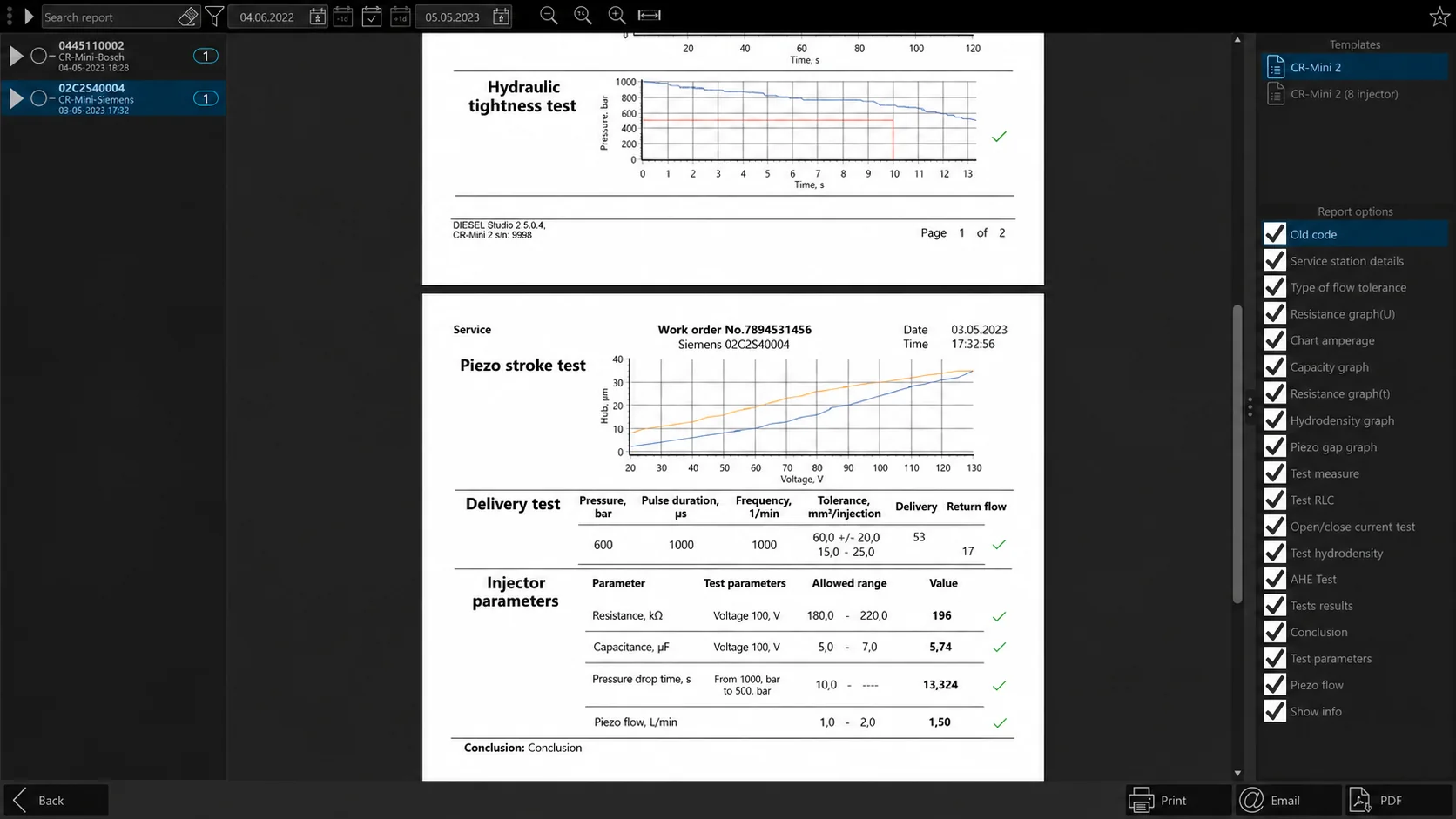

Measurement of piezo stack resistance.

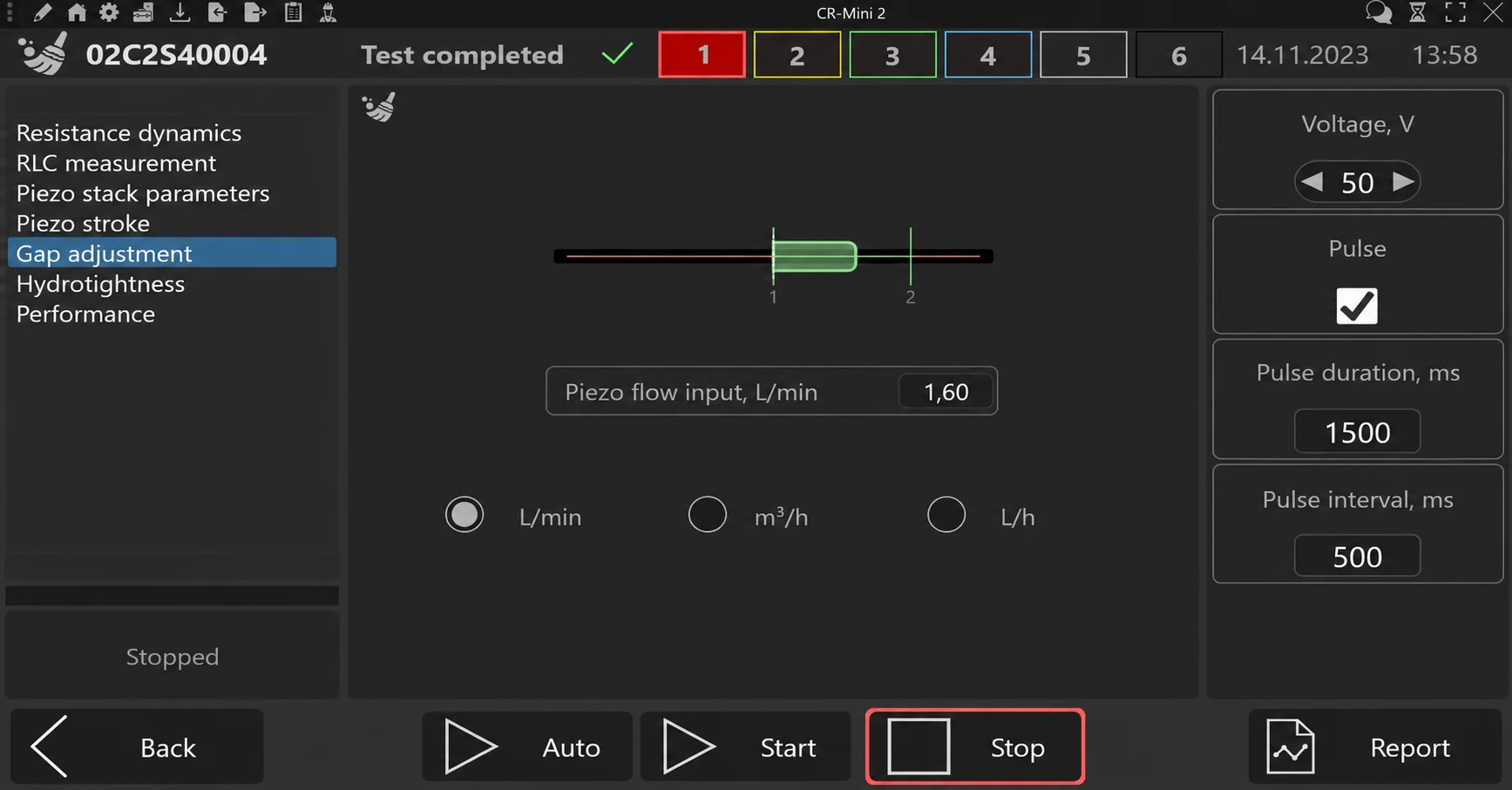

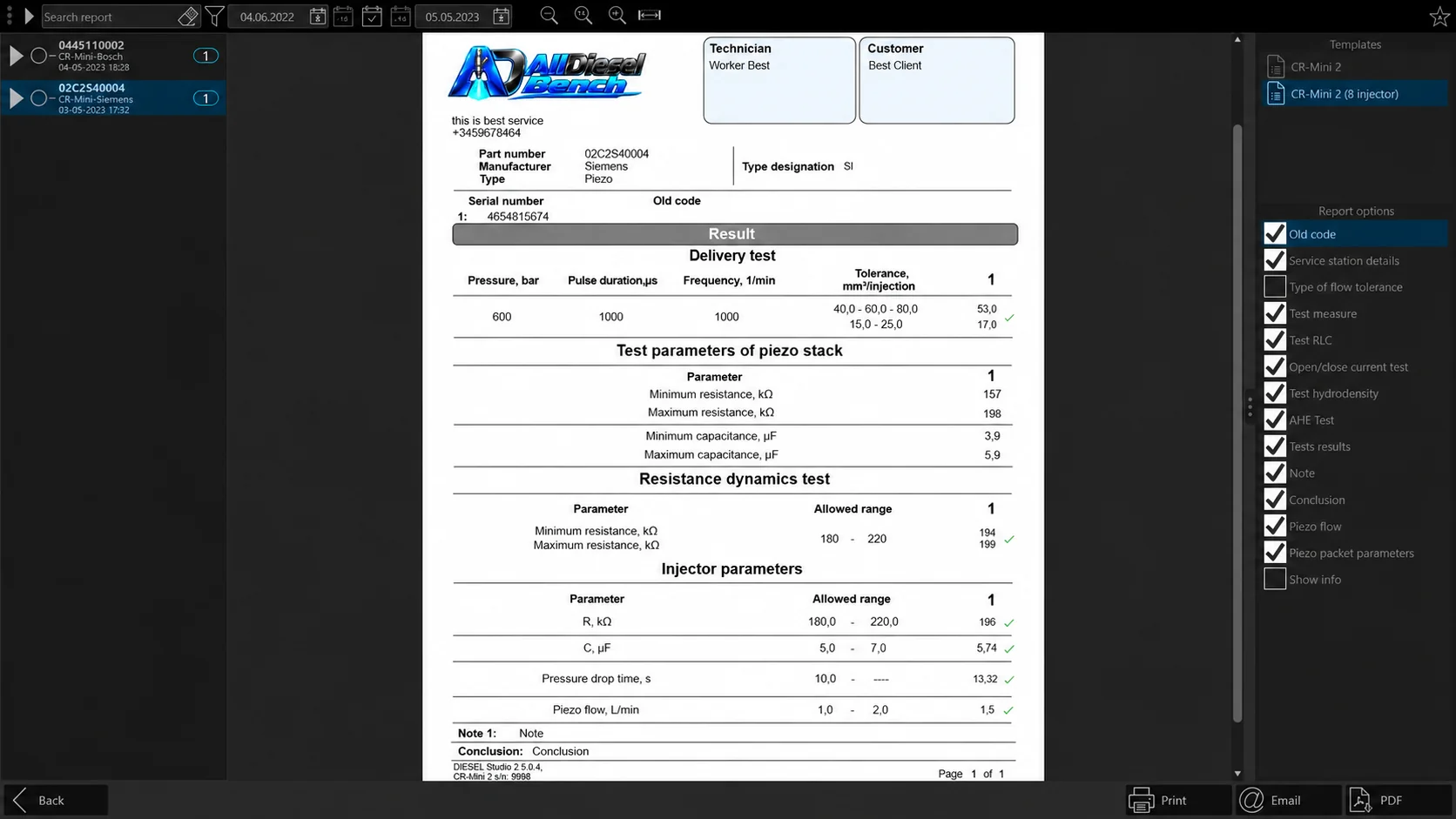

Actuation of piezo injectors for measuring volumetric flow through the control valve using a flowmeter.

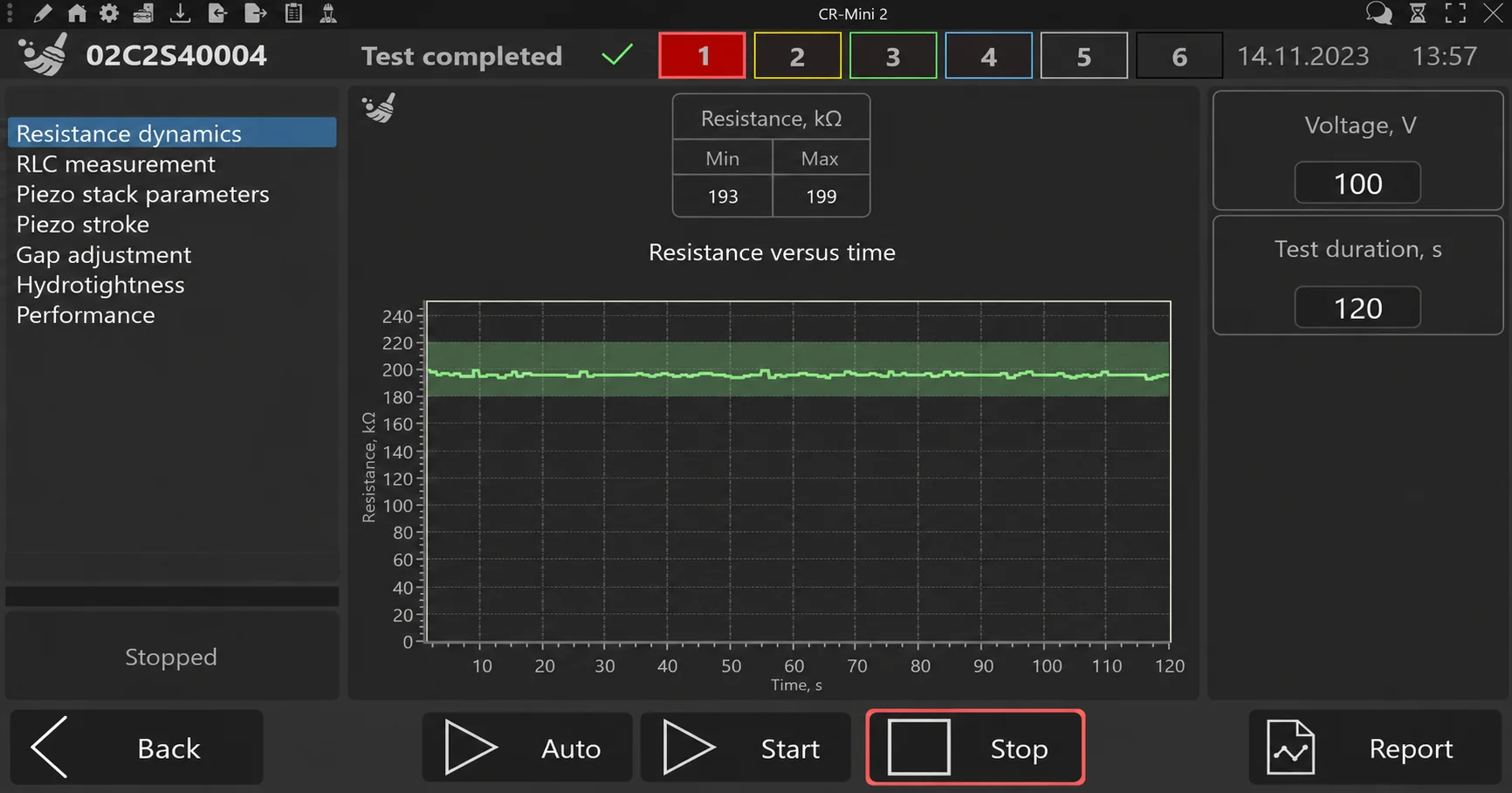

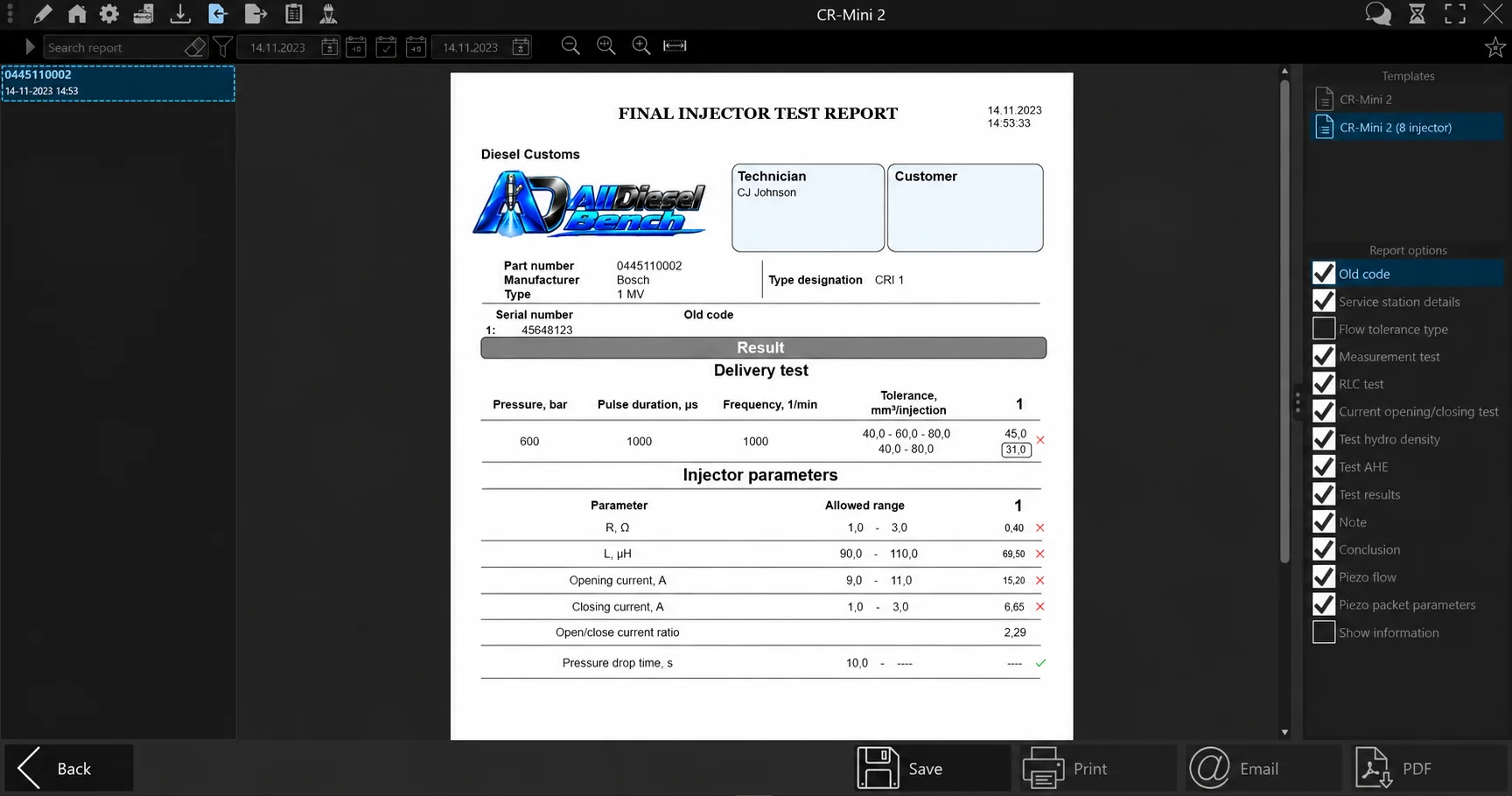

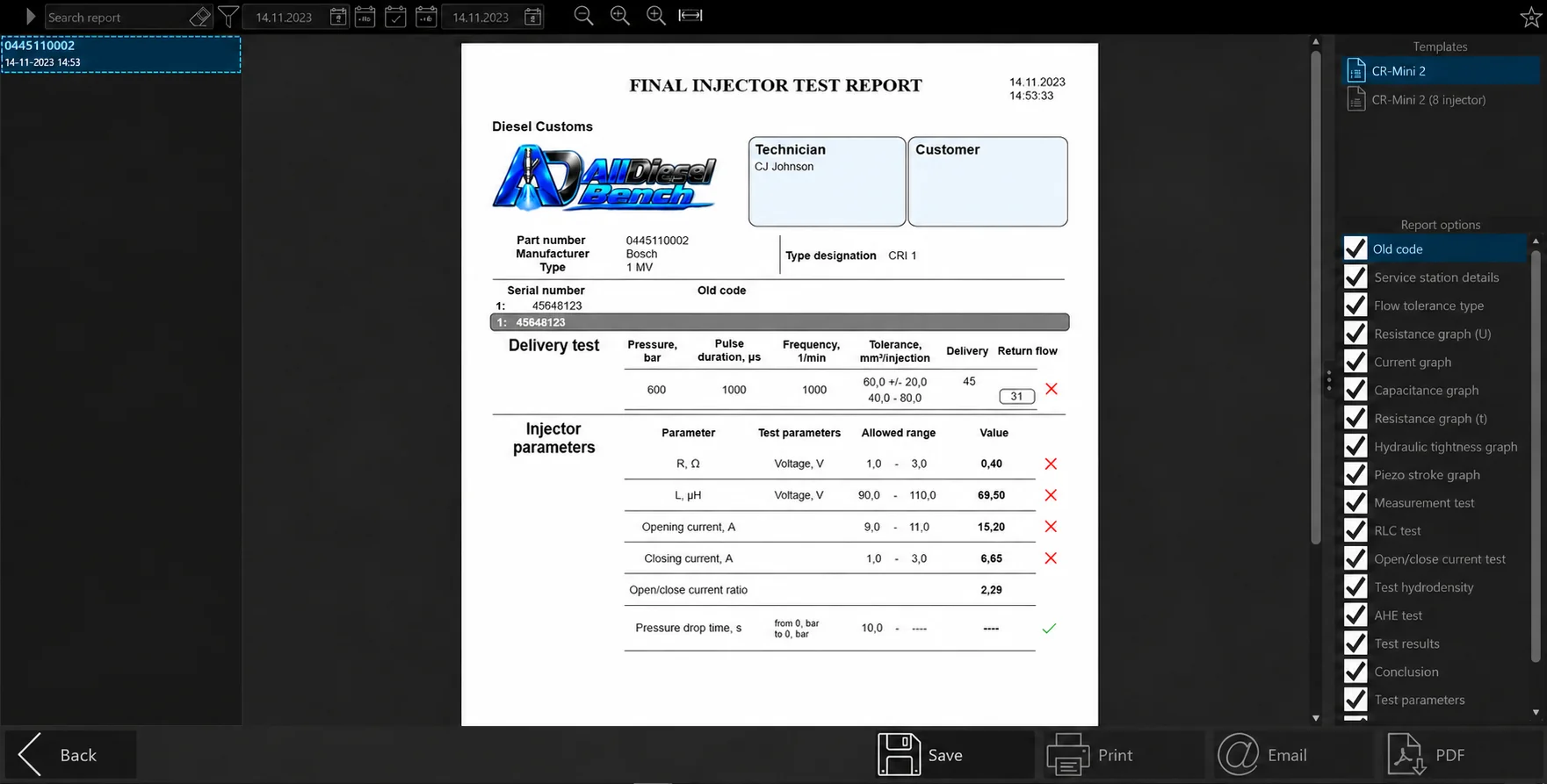

Determination of injector solenoid valve opening and closing currents.
Automatic or manual system pressure control.
Automatic overcurrent protection for the injector and pressure regulator.
Automatic saving of operating parameters.
